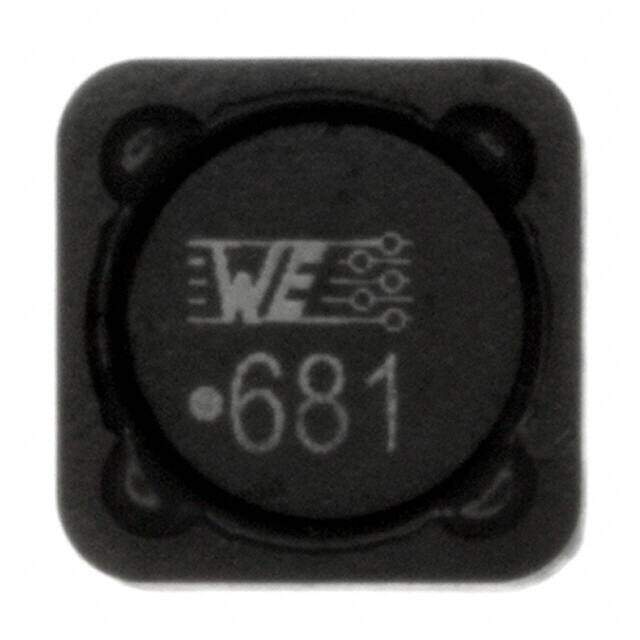

7447709681 image
Favorite
7447709681 image
Favorite

7447709681

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 680muH
PDF
/
Buying Options
Total Price: USD $2.25
Unit Price: USD $2.2528
≥1 USD $2.2528
≥10 USD $2.0636
≥100 USD $1.94128
≥500 USD $1.81984
Inventory: 1265
Minimum: 1
-
+

Technical Details

Technical

Depth 12mm
Current Rating 1.1A
Case Code (Metric) 3225
Case Code (Imperial) 1210
Lead Pitch 7mm
Inductance 680μH
Test Frequency 1kHz
DC Resistance (DCR) 825mOhm Max
Max DC Current 1.1A
Frequency - Self Resonant 1.5MHz
Inductance Frequency - Test 1kHz
Current - Saturation 1.3A
Inductance Tolerance 20%
RMS Current (Irms) 1.1A
Series Resistance 825mOhm
Shielding Shielded
Current Rating (Amps) 1.1A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 825mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Dimensions

Height 10mm
Height Seated (Max) 0.394 10.00mm
Length 12mm
Width 12mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200

Physical

Material - Core Ferrite
Weight 4.535924g
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
