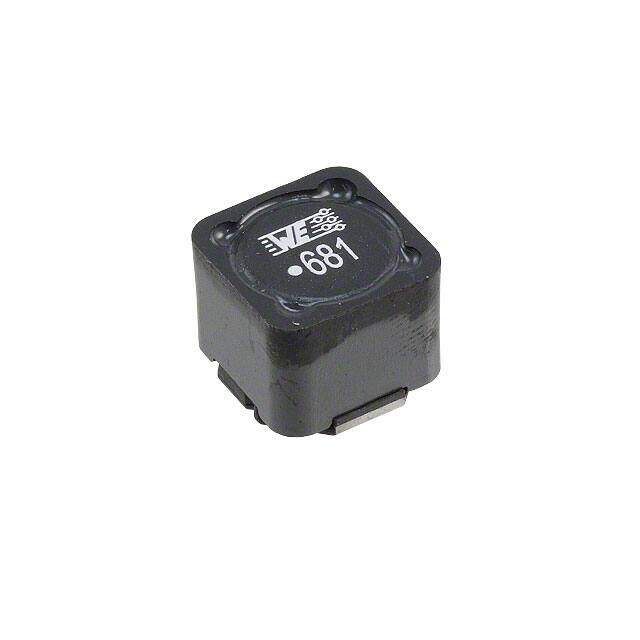

7687709681
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD HV Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 680muH
PDF
/
Inventory: 4686
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-PD HV
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 800mA
Shielding Shielded
Depth 12mm
Current Rating 800mA
Inductance 680μH
Test Frequency 100kHz
DC Resistance (DCR) 1.15Ohm Max
Max DC Current 800mA
Frequency - Self Resonant 1.5MHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.2A
Inductance Tolerance 20%
RMS Current (Irms) 800mA
Series Resistance 950mOhm
Dimensions
Height 10.5mm
Height Seated (Max) 0.413 10.50mm
Length 12mm
Width 11.9888mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant

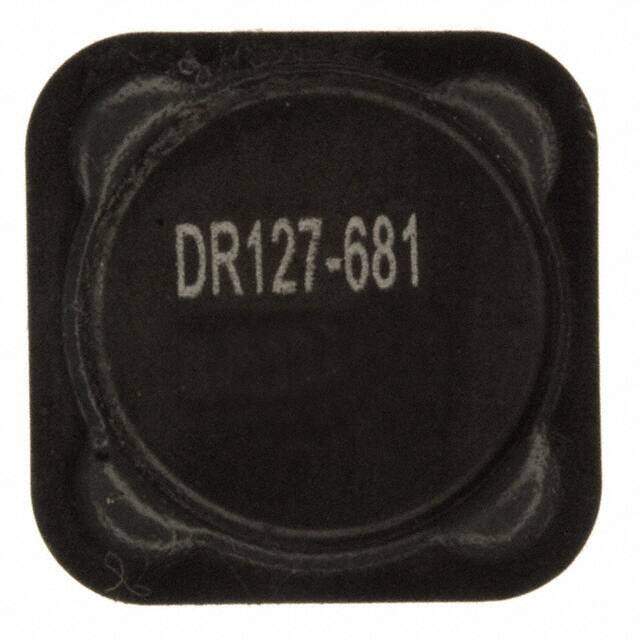

Alternative Model
