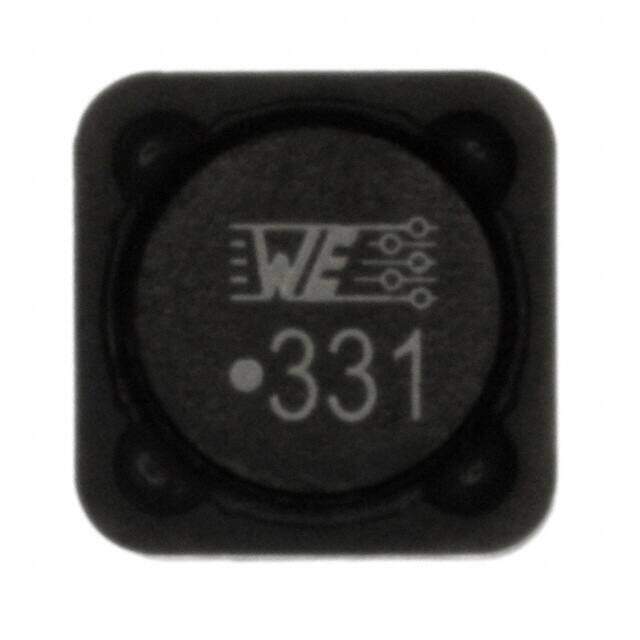

7447709331
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 330muH
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.49685
≥1 USD $0.49685
≥10 USD $0.40755
≥100 USD $0.3952
≥500 USD $0.38285
≥1000 USD $0.36955
Inventory: 1130
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 12mm
Length 12mm
Height Seated (Max) 0.394 10.00mm
Height 10mm
Technical
Series Resistance 430mOhm
RMS Current (Irms) 1.5A
Inductance Tolerance 20%
Current - Saturation 1.7A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 2MHz
Max DC Current 1.5A
DC Resistance (DCR) 430mOhm Max
Test Frequency 1kHz
Inductance 330μH
Lead Pitch 7mm
Case Code (Imperial) 1210
Case Code (Metric) 3225
Current Rating 1.5A
Depth 12mm
Shielding Shielded
Current Rating (Amps) 1.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 430mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
