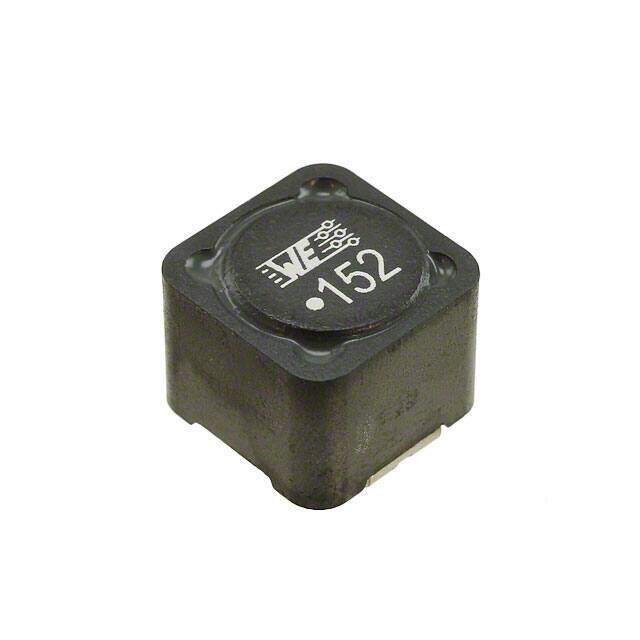

7447709152
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 1.5mH
PDF
/
Buying Options
Total Price: USD $2.25
Unit Price: USD $2.2528
≥1 USD $2.2528
≥10 USD $2.0636
≥100 USD $1.94128
≥500 USD $1.81984
Inventory: 1413
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 4.535924g
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Series WE-PD
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 2.3Ohm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 650mA
Shielding Shielded
Depth 12mm
Current Rating 650mA
Case Code (Metric) 3225
Case Code (Imperial) 1210
Lead Pitch 7mm
Inductance 1.5mH
Test Frequency 1kHz
DC Resistance (DCR) 2.3Ohm Max
Max DC Current 900mA
Frequency - Self Resonant 900kHz
Inductance Frequency - Test 1kHz
Current - Saturation 800mA
Inductance Tolerance 20%
RMS Current (Irms) 650mA
Series Resistance 2.3Ohm
Dimensions
Height 10mm
Height Seated (Max) 0.394 10.00mm
Length 12mm
Width 12mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
