RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors

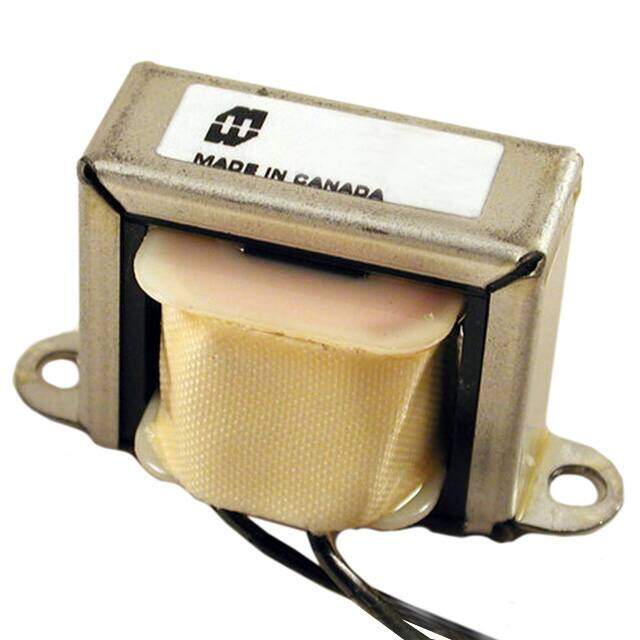

Description 156 Nonstandard 2.810Lx1.500W 71.37mmx38.10mm 1.5mH
PDF
/
Buying Options
Total Price: USD $14.77
Unit Price: USD $14.771865
≥1 USD $14.771865
≥10 USD $13.93572
≥100 USD $13.146906
≥500 USD $12.402746
≥1000 USD $11.700701
Inventory: 1187
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 1.690 42.93mm
Height 42.926mm

Technical

Special Feature INDUCTANCE MEASURED WITH RATED DC CURRENT FLOWING
Inductance Tolerance 15%
Inductor Type GENERAL PURPOSE INDUCTOR
Inductor Application FILTER CHOKE
Max DC Current 5A
DC Resistance (DCR) 70mOhm
Inductance 1.5mH
Lead Length 12.7mm
Current Rating 5A
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Tolerance ±15%
Size / Dimension 2.810Lx1.500W 71.37mmx38.10mm
Series 156
Packaging Bulk

Physical

Shape/Size Description RECTANGULAR PACKAGE
Weight 499.858792g
Terminal Shape FLEXIBLE LEAD
Package / Case Nonstandard
Mounting Type Chassis Mount
Mount Chassis Mount

Supply Chain

Factory Lead Time 4 Weeks
