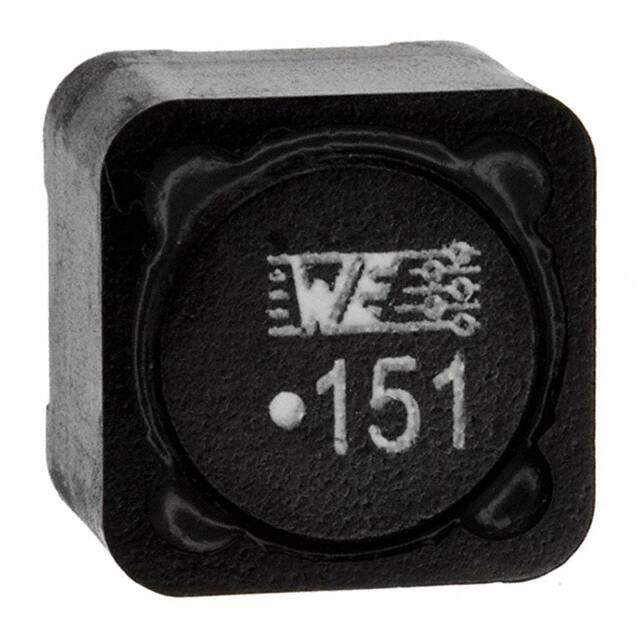

7447709151

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 150muH
PDF
/
Buying Options
Total Price: USD $1.7
Unit Price: USD $1.70434
≥1 USD $1.70434
≥10 USD $1.60787
≥100 USD $1.51686
≥500 USD $1.431
Inventory: 1155
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 12mm
Length 12mm
Height Seated (Max) 0.394 10.00mm
Height 10mm

Technical

Series Resistance 200mOhm
RMS Current (Irms) 2.1A
Inductance Tolerance 20%
Current - Saturation 2.7A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 3.5MHz
Max DC Current 2.1A
DC Resistance (DCR) 200mOhm Max
Test Frequency 1kHz
Inductance 150μH
Current Rating 2.1A
Depth 12mm
Shielding Shielded
Current Rating (Amps) 2.1A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 200mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Weight 36.28739g
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
