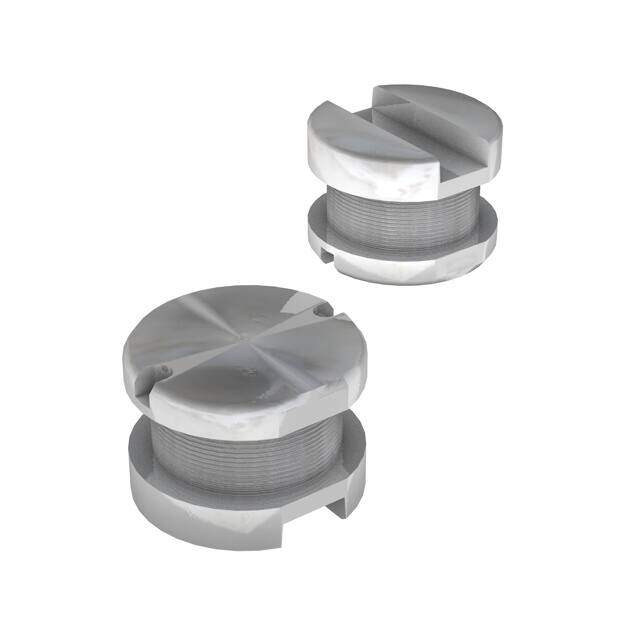

SDR0403-151KL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SDR0403 Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 150muH
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.4752
≥1 USD $0.4752
≥10 USD $0.40832
≥100 USD $0.373824
≥500 USD $0.340032
≥1000 USD $0.302544
≥3000 USD $0.285578
Inventory: 1151
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Number of Pins 2
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2006
Series SDR0403
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±10%
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Packing Method TR, Embossed Plastic, 13 Inch
Shielding NO
Number of Functions 1
Depth 4.3mm
Current Rating 260mA
Military Standard Not
Inductance 150μH
Test Frequency 1kHz
DC Resistance (DCR) 3.4Ohm Max
Max DC Current 260mA
Frequency - Self Resonant 8MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
RMS Current (Irms) 260mA
DC Current 260mA
Inductance Tolerance 10%
Case/Size Code 1816
Q Factor 50
Current - Saturation 400mA
Quality Factor-Min (at L-nom) 50
Q @ Freq 50 @ 796kHz
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.138 3.50mm
Height 3.2mm
Diameter 4.5mm
