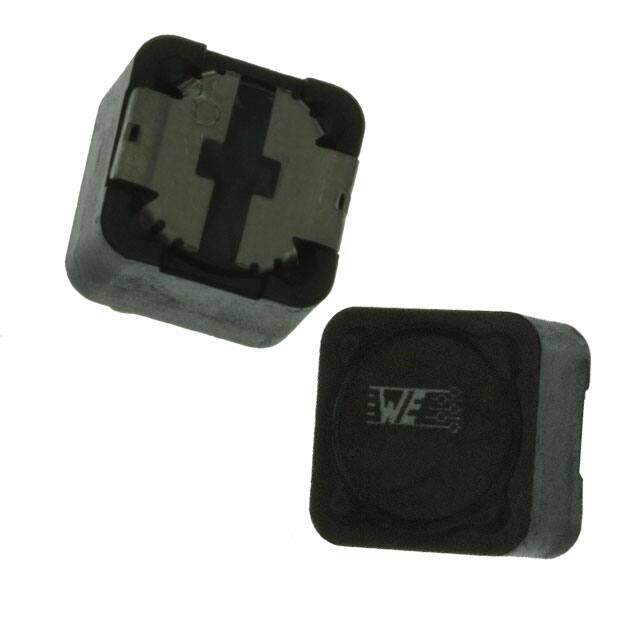

744770282
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 820UH 600MA 1.64 OHM
PDF
/
Buying Options
Total Price: USD $1.75
Unit Price: USD $1.754857
≥1 USD $1.754857
≥10 USD $1.655523
≥100 USD $1.561815
≥500 USD $1.473408
≥1000 USD $1.390012
Inventory: 1192
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.315 8.00mm
Technical
Inductance Tolerance 20%
Current - Saturation 800mA
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 2MHz
DC Resistance (DCR) 1.64Ohm Max
Inductance 820μH
Shielding Shielded
Current Rating (Amps) 600mA
Resistance 936mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
