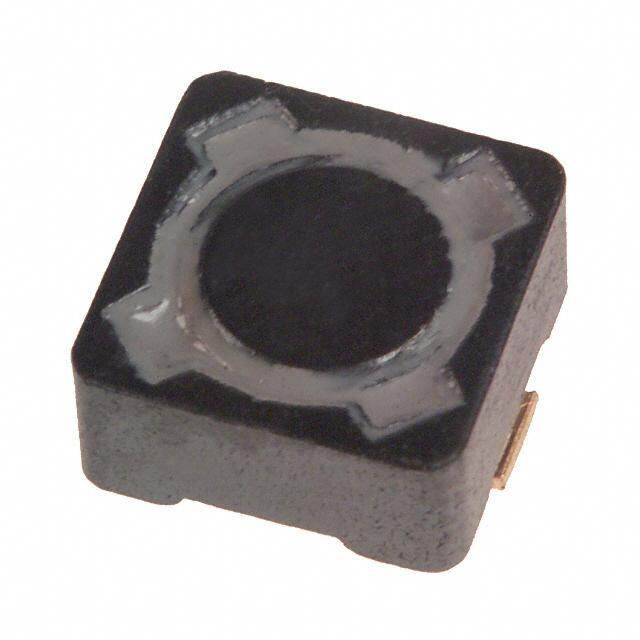

DQ7545-821M

TE Connectivity
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Contains Lead WRAPAROUND fixed air core inductor 85C 100kHz 5.2Ohm 820muH
PDF
/
Inventory: 3482
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant

Dimensions

Width 7.493mm
Length 7.493mm
Height Seated (Max) 4.4958mm

Technical

Inductance-Nom (L) 820 μH
DC Resistance (DCR) - Parallel 5.2Ohm
Current - Saturation 200mA
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Test Frequency 100kHz
Inductance 820 μH
Current Rating 200mA
Number of Functions 1
Shielding Shielded
HTS Code 8504.50.80.00
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 2
Tolerance 20%
Published 2002
Packaging Tape & Reel (TR)

Physical

Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mount Surface Mount
