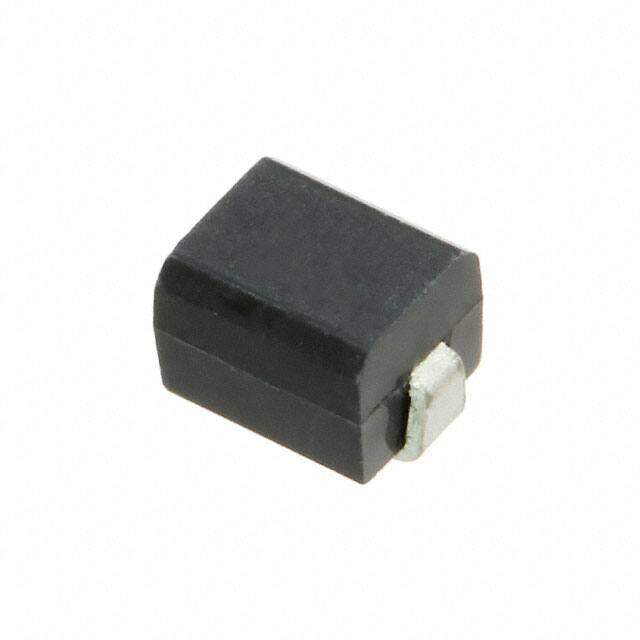

744764902 image
Favorite
744764902 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-GFH Nonstandard 0.134Lx0.098W 3.40mmx2.50mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.3608
≥1 USD $0.3608
≥10 USD $0.31504
≥100 USD $0.2728
≥500 USD $0.242
≥1000 USD $0.22
Inventory: 149
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 2.4892mm
Length 3.4036mm
Height Seated (Max) 0.094 2.40mm

Technical

Inductance Tolerance 20%
Inductance Frequency - Test 1.25MHz
Q @ Freq 25 @ 1.25MHz
Frequency - Self Resonant 100MHz
Max DC Current 1.1A
DC Resistance (DCR) 260mOhm Max
Test Frequency 1.25MHz
Inductance 2.2μH
Current Rating 1.1A
Shielding Unshielded
Current Rating (Amps) 1.1A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.134Lx0.098W 3.40mmx2.50mm
Series WE-GFH
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Iron Powder
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
