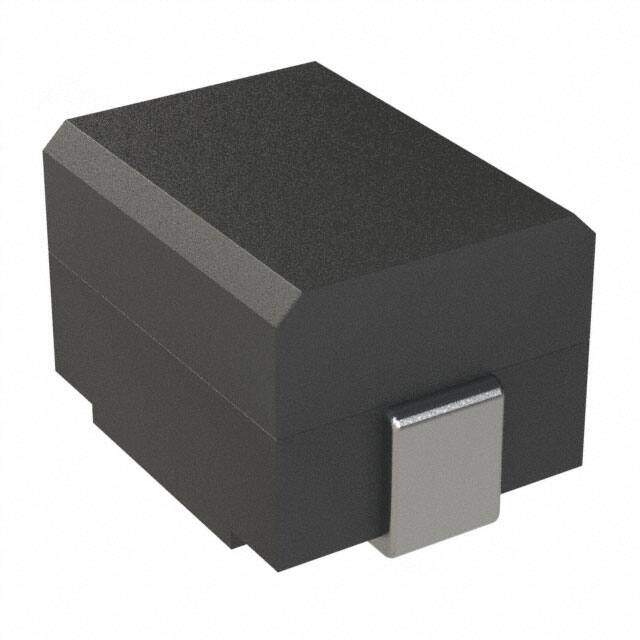

74476403
RoHS
RoHS compliant
RoHS compliantPackage 1210 (3225 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-GF SMT WIRE WOUND INDUCTOR SI
PDF
/
Buying Options
Total Price: USD $3.97
Unit Price: USD $3.9691
≥1 USD $3.9691
≥10 USD $3.2566
≥100 USD $3.15495
≥500 USD $3.0533
≥1000 USD $2.95165
Inventory: 1135
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Series WE-GF
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Type Wirewound
Resistance 1.2Ohm
Current Rating (Amps) 260mA
Shielding Unshielded
Inductance 3.3μH
DC Resistance (DCR) 1.2Ohm Max
Max DC Current 260mA
Frequency - Self Resonant 72MHz
Q @ Freq 30 @ 7.96MHz
Inductance Frequency - Test 7.96MHz
Inductance Tolerance 10%
Dimensions
Height Seated (Max) 0.094 2.40mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
