ELJ-FA3R3JF
RoHS
RoHS compliant
RoHS compliantPackage 1210 (3225 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FA 1210 (3225Metric) 0.126Lx0.098W 3.20mmx2.50mm 3.3muH
PDF
/
Buying Options
Total Price: USD $2.39
Unit Price: USD $2.38925
≥1 USD $2.38925
≥10 USD $1.95985
≥100 USD $1.89905
≥500 USD $1.8373
≥1000 USD $1.7765
Inventory: 20010
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Surface Mount YES
Terminal Shape J BEND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -20°C~85°C
Packaging Tape & Reel (TR)
Published 2010
Series FA
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Tolerance ±5%
JESD-609 Code e2
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin/Copper (Sn/Cu)
HTS Code 8504.50.80.00
Current Rating (Amps) 180mA
Packing Method TR, Embossed, 7 Inch
Shielding Unshielded
Number of Functions 1
Construction Rectangular
Reach Compliance Code compliant
Inductance 3.3μH
Test Frequency 7.96MHz
DC Resistance (DCR) 1.2Ohm Max
Frequency - Self Resonant 65MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 30 @ 7.96MHz
Quality Factor-Min (at L-nom) 30
Inductance Frequency - Test 7.96MHz
Rated Current-Max 0.18A
Dimensions
Height Seated (Max) 0.094 2.40mm
Compliance
RoHS Status RoHS Compliant

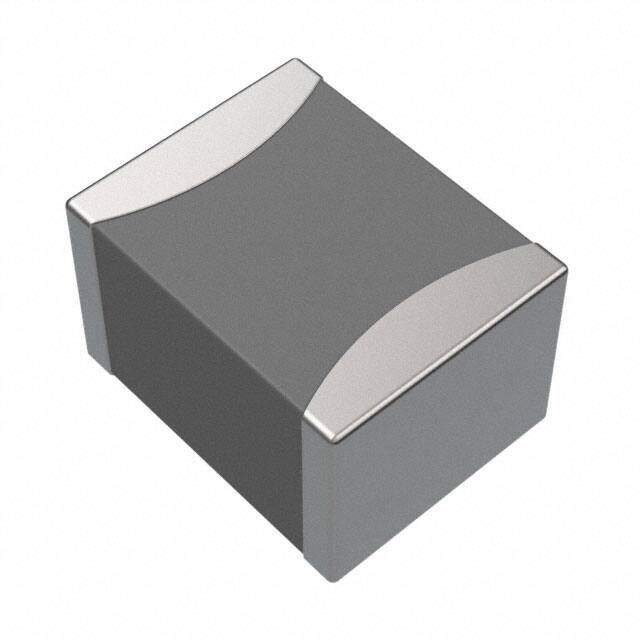

Alternative Model
