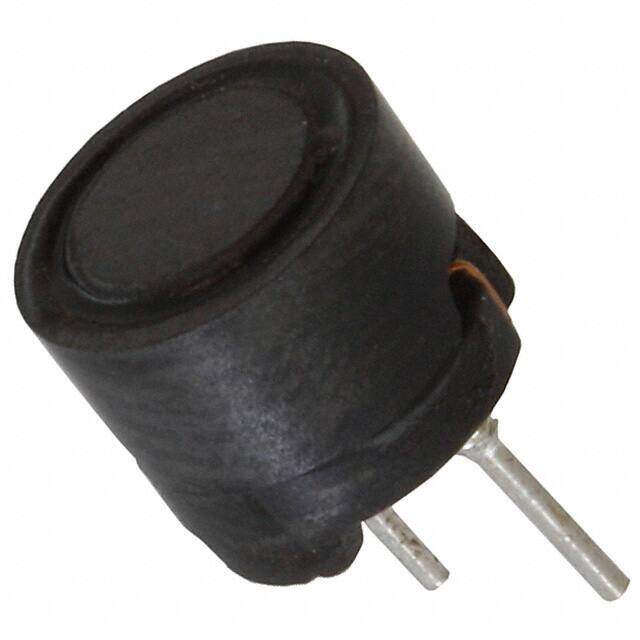

744731680
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TIS Radial Vertical Cylinder 0.307Dia 7.80mm 68muH
PDF
/
Buying Options
Total Price: USD $1.89
Unit Price: USD $1.891772
≥1 USD $1.891772
≥10 USD $1.784686
≥100 USD $1.683668
≥500 USD $1.588376
≥1000 USD $1.498459
Inventory: 1080
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Length 7.5mm
Height Seated (Max) 0.295 7.50mm
Height 7.5mm
Technical
RMS Current (Irms) 1.5A
Inductance Tolerance 10%
Current - Saturation 1A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 6.3MHz
Max DC Current 890mA
DC Resistance (DCR) 200mOhm Max
Test Frequency 1kHz
Inductance 68μH
Lead Pitch 5mm
Current Rating 1.5A
Shielding Shielded
Current Rating (Amps) 1.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.307Dia 7.80mm
Series WE-TIS
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
