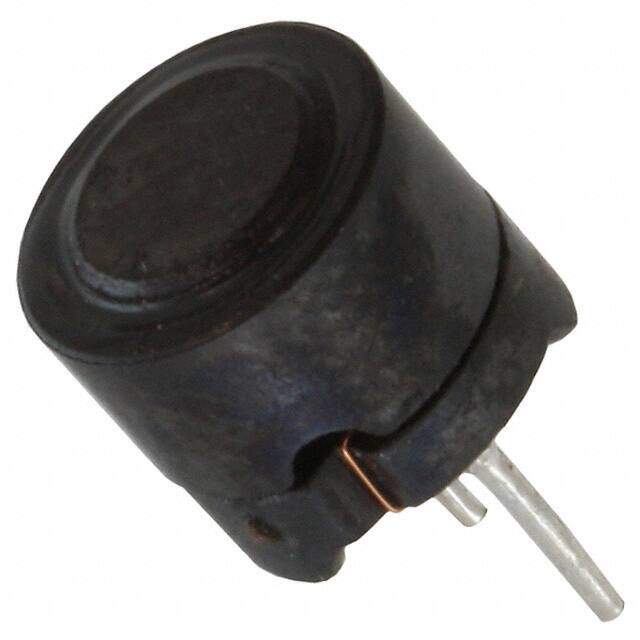

744731472
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TIS Radial Vertical Cylinder 0.307Dia 7.80mm 4.7mH
PDF
/
Buying Options
Total Price: USD $2.11
Unit Price: USD $2.112
≥1 USD $2.112
≥10 USD $2.01168
≥100 USD $1.87264
≥500 USD $1.66408
≥1000 USD $1.52504
Inventory: 167
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TIS
Size / Dimension 0.307Dia 7.80mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Resistance 11Ohm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 160mA
Shielding Shielded
Current Rating 160mA
Lead Pitch 5mm
Inductance 4.7mH
Test Frequency 1kHz
DC Resistance (DCR) 11.4Ohm Max
Max DC Current 110mA
Frequency - Self Resonant 800kHz
Inductance Frequency - Test 1kHz
Current - Saturation 140mA
Inductance Tolerance 10%
RMS Current (Irms) 160mA
Dimensions
Height 7.5mm
Height Seated (Max) 0.295 7.50mm
Length 7.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
