ELC11D472F
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description

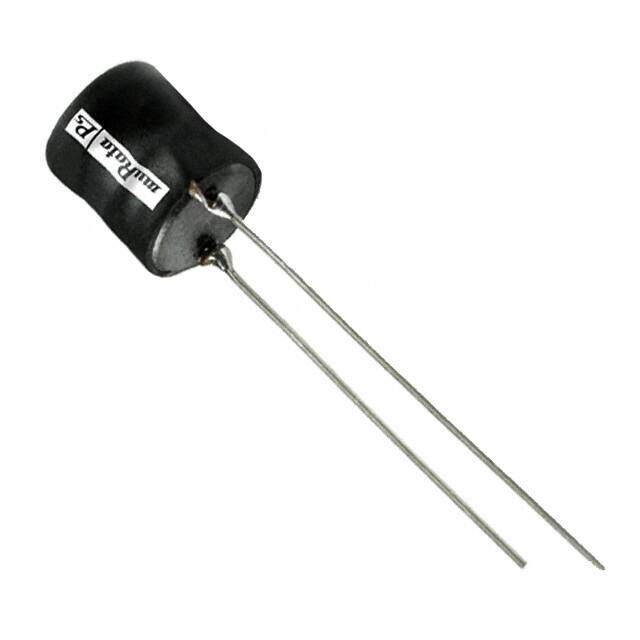

ELC11D Radial Vertical Cylinder 0.453Dia 11.50mm 4.7mH
PDF
/
Inventory: 9166
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Packaging Bulk
Published 2006
Series ELC11D
Size / Dimension 0.453Dia 11.50mm
Tolerance ±10%
JESD-609 Code e2
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Resistance 5.2Ohm
Terminal Finish Tin/Copper (Sn/Cu)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Cylindrical
Current Rating 260mA
Military Standard Not
Lead Pitch 5mm
Operating Temperature (Max) 105°C
Inductance 4.7mH
Test Frequency 10kHz
DC Resistance (DCR) 5.2Ohm
Max DC Current 260mA
Inductor Application POWER INDUCTOR
Lead/Base Style Radial
Inductance Tolerance 10%
DC Current 260mA
RMS Current (Irms) 260mA
Series Resistance 5.2Ohm
Self Resonant Frequency 10kHz
Dimensions
Diameter 11.5mm
Height 13.9mm
Height Seated (Max) 0.547 13.90mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Alternative Model
