7447221332
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder, 4 Leads
Category Inductors, Coils, Chokes / Fixed Inductors
Description

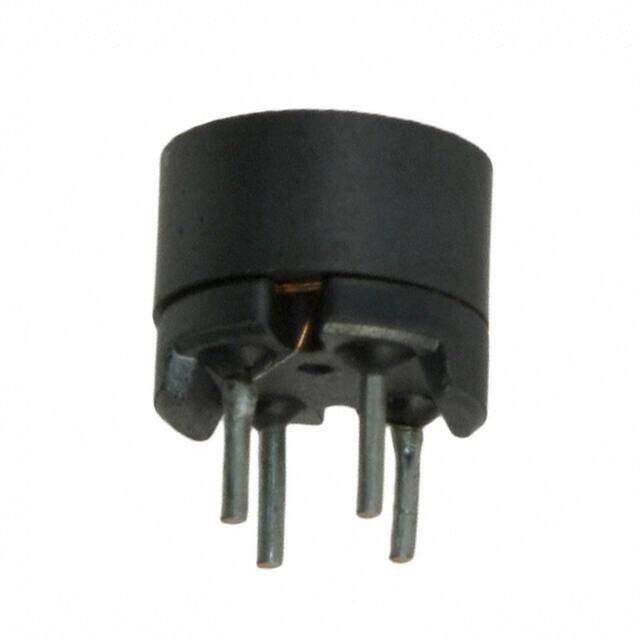

WE-TIF Radial Vertical Cylinder 4Leads 0.433Dia 11.00mm 3.3mH
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.463772
≥1 USD $1.463772
≥10 USD $1.380914
≥100 USD $1.302753
≥500 USD $1.229017
≥1000 USD $1.159442
Inventory: 1100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder, 4 Leads
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TIF
Size / Dimension 0.433Dia 11.00mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 400mA
Shielding Unshielded
Current Rating 400mA
Inductance 3.3mH
Test Frequency 10kHz
DC Resistance (DCR) 3.2Ohm Max
Frequency - Self Resonant 500kHz
Inductance Frequency - Test 10kHz
Current - Saturation 500mA
Inductance Tolerance 5%
RMS Current (Irms) 400mA
Dimensions
Height Seated (Max) 0.669 17.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
