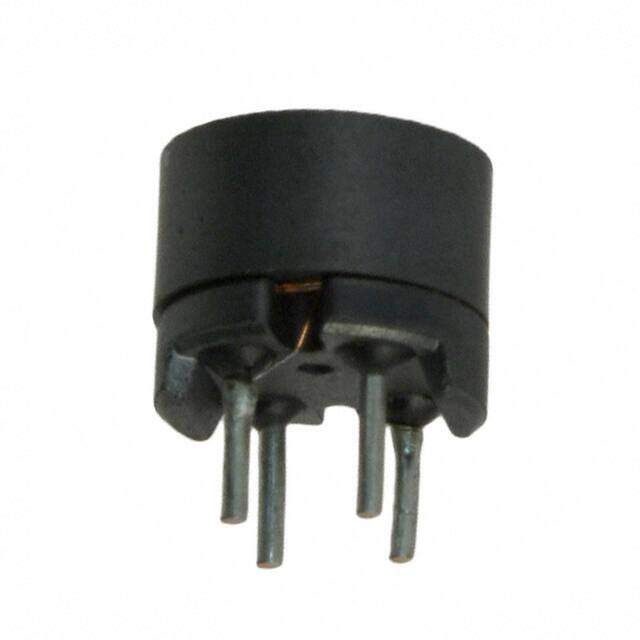

12LRS335C
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder, 4 Leads
Category Inductors, Coils, Chokes / Fixed Inductors
Description
1200LRS Radial Vertical Cylinder 4Leads 0.413Dia 10.50mm 3.3mH
PDF
/
Inventory: 1658
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Tin
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder, 4 Leads
Number of Pins 4
Shape/Size Description CYLINDRICAL PACKAGE
Core Material Ferrite
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series 1200LRS
Size / Dimension 0.413Dia 10.50mm
Tolerance ±15%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Wirewound
Shielding YES
Number of Functions 1
Current Rating 200mA
Military Standard Not
Lead Pitch 5mm
Inductance 3.3mH
Test Frequency 10kHz
DC Resistance (DCR) 8.7Ohm Max
Max DC Current 200mA
Inductor Application POWER INDUCTOR
Lead/Base Style Pin
Inductance Tolerance 15%
DC Current 200mA
RMS Current (Irms) 200mA
Saturation Current 200mA
Dimensions
Diameter 10.5mm
Height 8.5mm
Height Seated (Max) 0.335 8.50mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
