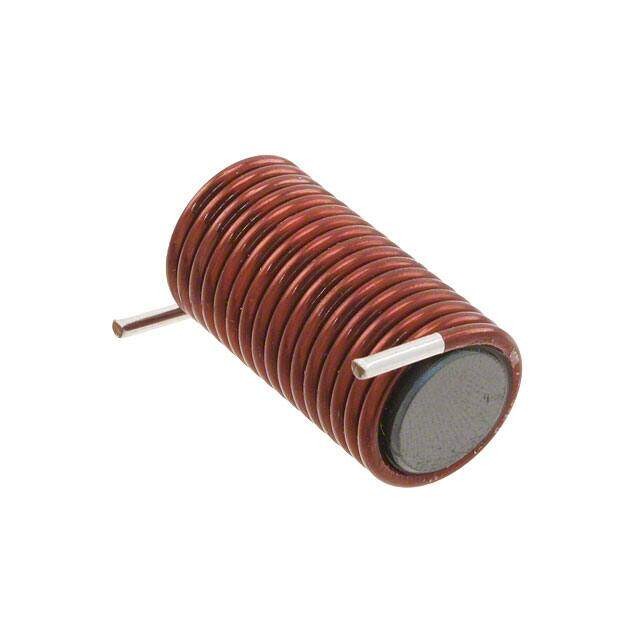

744711015
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-SD Radial Horizontal Cylinder (Open) 0.630Diax1.213L 16.00mmx30.80mm 10muH
PDF
/
Buying Options
Total Price: USD $1.97
Unit Price: USD $1.968957
≥1 USD $1.968957
≥10 USD $1.857507
≥100 USD $1.752363
≥500 USD $1.653172
≥1000 USD $1.559591
Inventory: 1226
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 29.2mm
Length 30.8mm
Height 30.8mm
Diameter 14mm
Technical
Inductance Tolerance 25%
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 37MHz
Max DC Current 15A
DC Resistance (DCR) 5.7mOhm
Test Frequency 10kHz
Inductance 10μH
Lead Length 29.2mm
Lead Pitch 29.2mm
Frequency 37MHz
Current Rating 15A
Shielding Unshielded
Current Rating (Amps) 15A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Resistance 5.7MOhm
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±25%
Size / Dimension 0.630Diax1.213L 16.00mmx30.80mm
Series WE-SD
Packaging Tray
Operating Temperature -40°C~150°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Horizontal Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 21 Weeks
