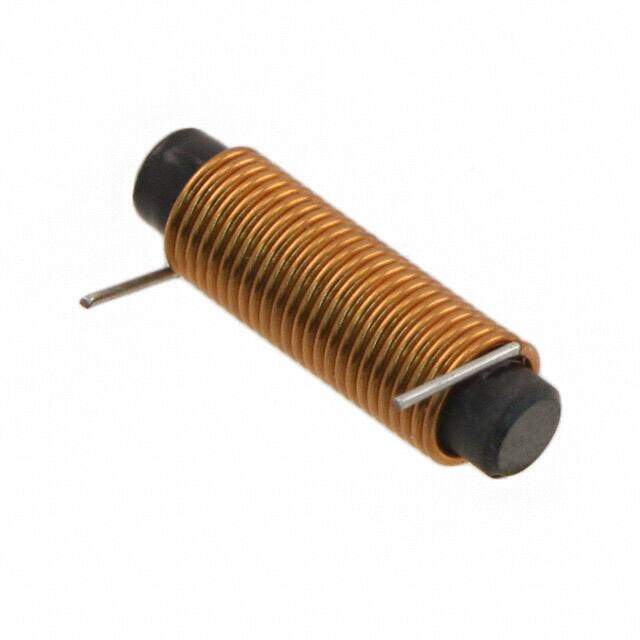

744711003 image
Favorite
744711003 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Horizontal Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-SD Radial Horizontal Cylinder (Open) 0.205Diax0.728L 5.20mmx18.50mm 10muH
PDF
/
Buying Options
Total Price: USD $3.75
Unit Price: USD $3.745704
≥1 USD $3.745704
≥200 USD $1.495393
≥500 USD $1.445503
≥1000 USD $1.420558
Inventory: 1146
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 21 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Horizontal Cylinder (Open)
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~150°C
Packaging Tray
Series WE-SD
Size / Dimension 0.205Diax0.728L 5.20mmx18.50mm
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Resistance 33MOhm
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.5A
Shielding Unshielded
Current Rating 2.5A
Frequency 45MHz
Lead Pitch 13.5mm
Lead Length 13.5mm
Inductance 10μH
Test Frequency 10kHz
DC Resistance (DCR) 33mOhm
Max DC Current 2.5A
Frequency - Self Resonant 45MHz
Inductance Frequency - Test 10kHz
Inductance Tolerance 25%

Dimensions

Diameter 4.6mm
Height 18.5mm
Length 18.5mm
Width 13.5mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
