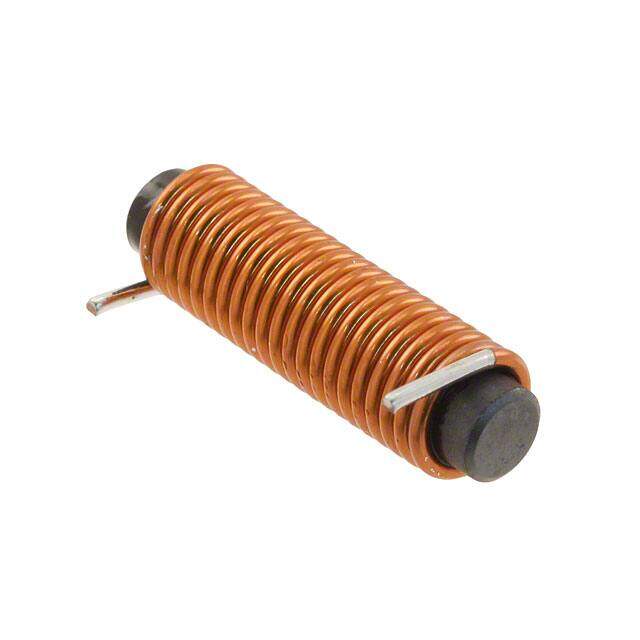

744711010 image
Favorite
744711010 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Horizontal Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-SD Radial Horizontal Cylinder (Open) 0.339Diax1.217L 8.60mmx30.90mm 10muH
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.500987
≥1 USD $1.500987
≥10 USD $1.416027
≥100 USD $1.335877
≥500 USD $1.260259
≥1000 USD $1.188926
Inventory: 1090
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 21 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Horizontal Cylinder (Open)
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~150°C
Packaging Tray
Series WE-SD
Size / Dimension 0.339Diax1.217L 8.60mmx30.90mm
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Resistance 8.8MOhm
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 10A
Shielding Unshielded
Current Rating 10A
Frequency 43MHz
Lead Pitch 24.9mm
Lead Length 24.9mm
Inductance 10μH
Test Frequency 10kHz
DC Resistance (DCR) 8.8mOhm
Max DC Current 10A
Frequency - Self Resonant 43MHz
Inductance Frequency - Test 10kHz
Inductance Tolerance 25%

Dimensions

Height 30.9mm
Length 30.9mm
Width 24.9mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
