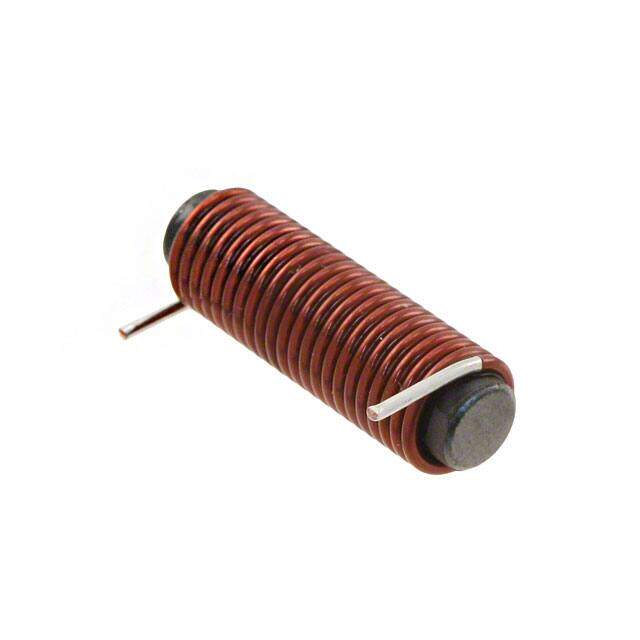

744711005
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-SD Radial Horizontal Cylinder (Open) 0.272Diax0.886L 6.90mmx22.50mm 10muH
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.716
≥1 USD $1.716
≥10 USD $1.69312
≥100 USD $1.53032
≥500 USD $1.47488
≥1000 USD $1.36576
≥3000 USD $1.25752
Inventory: 1163
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Horizontal Cylinder (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~150°C
Packaging Tray
Series WE-SD
Size / Dimension 0.272Diax0.886L 6.90mmx22.50mm
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Resistance 15.1MOhm
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 5A
Shielding Unshielded
Current Rating 5A
Frequency 50MHz
Lead Pitch 18.8mm
Lead Length 19mm
Inductance 10μH
Test Frequency 10kHz
DC Resistance (DCR) 15.1mOhm
Max DC Current 5A
Frequency - Self Resonant 50MHz
Inductance Frequency - Test 10kHz
Inductance Tolerance 25%
Dimensions
Length 22.5mm
Width 18.8mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
