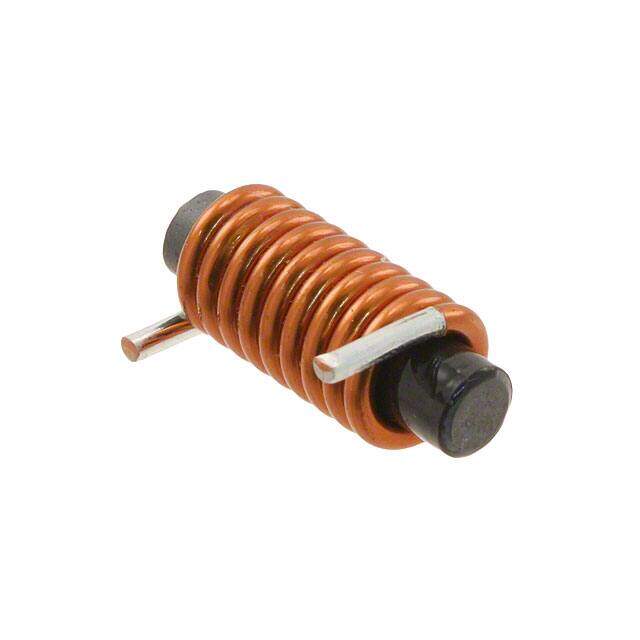

744710215
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-SD Radial Horizontal Cylinder (Open) 0.394Diax1.012L 10.00mmx25.70mm 2muH
PDF
/
Buying Options
Total Price: USD $1.79
Unit Price: USD $1.7864
≥1 USD $1.7864
≥10 USD $1.75912
≥100 USD $1.5884
≥500 USD $1.53208
≥1000 USD $1.418569
≥3000 USD $1.305049
Inventory: 1131
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Horizontal Cylinder (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~150°C
Packaging Bulk
Series WE-SD
Size / Dimension 0.394Diax1.012L 10.00mmx25.70mm
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Resistance 1.7MOhm
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 15A
Shielding Unshielded
Current Rating 15A
Frequency 85MHz
Lead Pitch 17.5mm
Lead Length 17.5mm
Inductance 2μH
Test Frequency 10kHz
DC Resistance (DCR) 1.7mOhm
Max DC Current 15A
Frequency - Self Resonant 85MHz
Inductance Frequency - Test 10kHz
Inductance Tolerance 25%
Dimensions
Diameter 8mm
Height 25.7mm
Length 25.7mm
Width 17.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
