744710203
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

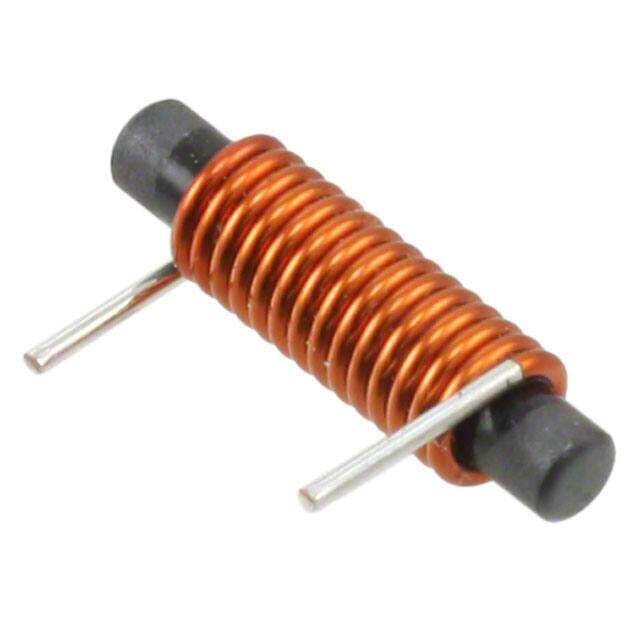

WE-SD Radial Horizontal Cylinder (Open) 0.126Diax0.484L 3.20mmx12.30mm 2muH
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.524915
≥1 USD $1.524915
≥10 USD $1.438595
≥100 USD $1.357173
≥500 USD $1.280347
≥1000 USD $1.207875
Inventory: 5761
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Horizontal Cylinder (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~150°C
Packaging Tray
Series WE-SD
Size / Dimension 0.126Diax0.484L 3.20mmx12.30mm
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Resistance 11MOhm
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.5A
Shielding Unshielded
Current Rating 2.5A
Frequency 110MHz
Lead Pitch 7.7mm
Lead Length 7.8mm
Inductance 2μH
Test Frequency 10kHz
DC Resistance (DCR) 11mOhm
Max DC Current 2.5A
Frequency - Self Resonant 110MHz
Inductance Frequency - Test 10kHz
Inductance Tolerance 25%
Dimensions
Length 12.3mm
Width 7.7mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
