744710205
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

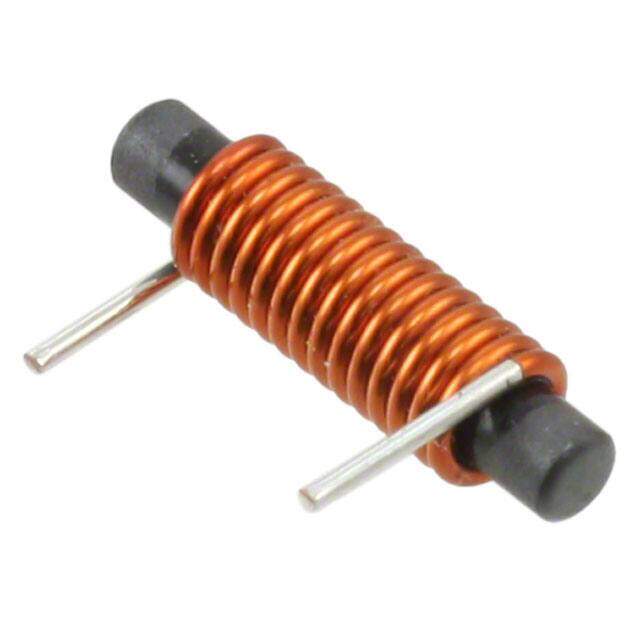

WE-SD Radial Horizontal Cylinder (Open) 0.232Diax0.551L 5.90mmx14.00mm 2muH
PDF
/
Buying Options
Total Price: USD $3.89
Unit Price: USD $3.887497
≥1 USD $3.887497
≥200 USD $1.551848
≥400 USD $1.499332
≥1000 USD $1.474387
Inventory: 1171
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 9.6mm
Length 14mm
Height 14mm
Diameter 4.9mm
Technical
Inductance Tolerance 25%
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 100MHz
Max DC Current 5A
DC Resistance (DCR) 6.5mOhm
Test Frequency 10kHz
Inductance 2μH
Lead Length 9.7mm
Lead Pitch 9.6mm
Frequency 100MHz
Current Rating 5A
Shielding Unshielded
Current Rating (Amps) 5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Resistance 6.5MOhm
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±25%
Size / Dimension 0.232Diax0.551L 5.90mmx14.00mm
Series WE-SD
Packaging Tray
Operating Temperature -40°C~150°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Horizontal Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 13 Weeks
