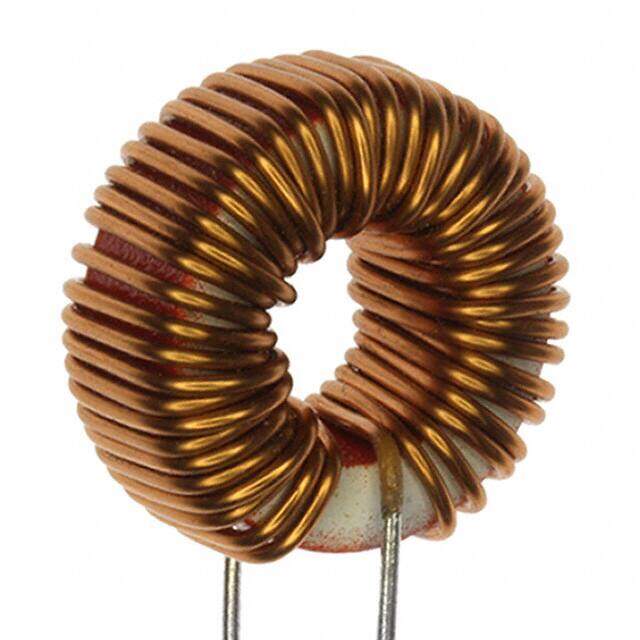

7447076
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-FI Radial Vertical (Open) 1.083Diax0.512W 27.50mmx13.00mm 150muH
PDF
/
Buying Options
Total Price: USD $10.2
Unit Price: USD $10.203
≥1 USD $10.203
≥10 USD $8.3714
≥100 USD $8.11015
≥500 USD $7.84795
≥1000 USD $7.5867
Inventory: 987
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Through Hole, Wire
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series WE-FI
Size / Dimension 1.083Diax0.512W 27.50mmx13.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Type Toroidal
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 5A
Shielding Unshielded
Depth 14mm
Current Rating 5A
Lead Pitch 11.5mm
Inductance 150μH
Test Frequency 10kHz
DC Resistance (DCR) 45mOhm Max
Max DC Current 5A
Inductance Frequency - Test 10kHz
Inductance Tolerance 20%
RMS Current (Irms) 5A
Series Resistance 45mOhm
Dimensions
Diameter 27.5mm
Length 27.5mm
Width 13.0048mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
