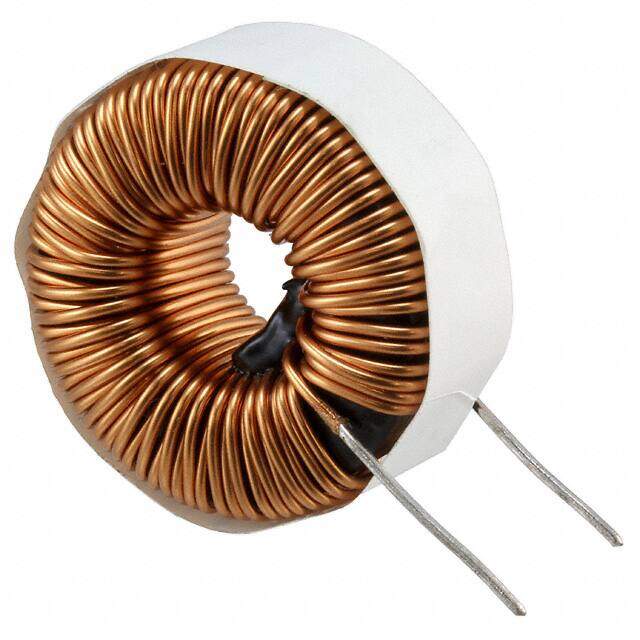

2300LL-151-V-RC
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
2300LL Radial Vertical (Open) 1.280Diax0.650W 32.51mmx16.51mm 150muH
PDF
/
Inventory: 4915
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Terminal Shape WIRE
Material - Core Sendust
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2007
Series 2300LL
Size / Dimension 1.280Diax0.650W 32.51mmx16.51mm
Tolerance ±15%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Toroidal
HTS Code 8504.50.80.00
Shielding Shielded
Number of Functions 1
Construction Vertical Mount
Current Rating 7A
Lead Length 12.7mm
Lead Spacing 13.716mm
Inductance 150μH
Test Frequency 1kHz
DC Resistance (DCR) 33mOhm Max
Inductor Application HIGH CURRENT INDUCTOR
Inductance Frequency - Test 1kHz
Rated Current-Max 7A
Dimensions
Diameter 32.5mm
Height 32.5mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
