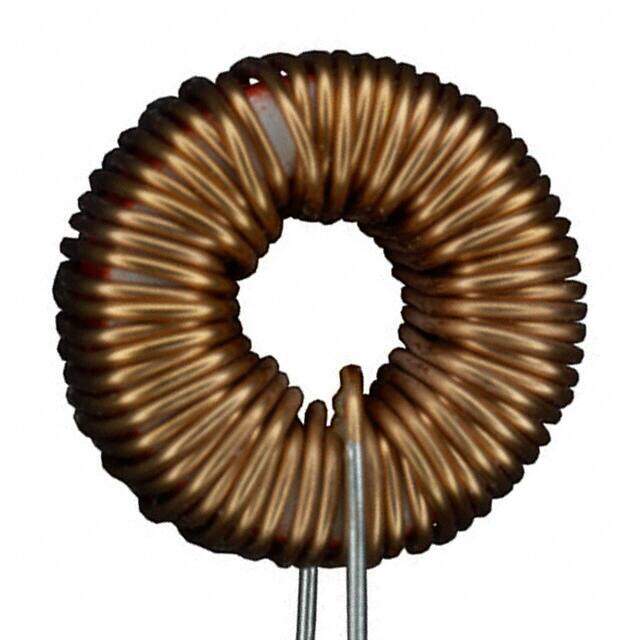

7447028
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-FI Radial Vertical (Open) 0.630Diax0.295W 16.00mmx7.50mm 150muH
PDF
/
Buying Options
Total Price: USD $1.61
Unit Price: USD $1.605669
≥1 USD $1.605669
≥10 USD $1.514784
≥100 USD $1.429047
≥500 USD $1.348161
≥1000 USD $1.27184
Inventory: 1156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Through Hole, Wire
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series WE-FI
Size / Dimension 0.630Diax0.295W 16.00mmx7.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Type Toroidal
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 1A
Shielding Unshielded
Depth 7.5mm
Current Rating 1A
Lead Pitch 7mm
Inductance 150μH
Test Frequency 10kHz
DC Resistance (DCR) 130mOhm Max
Max DC Current 1A
Inductance Frequency - Test 10kHz
Inductance Tolerance 20%
RMS Current (Irms) 1A
Dimensions
Diameter 16mm
Length 16mm
Width 8.509mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
