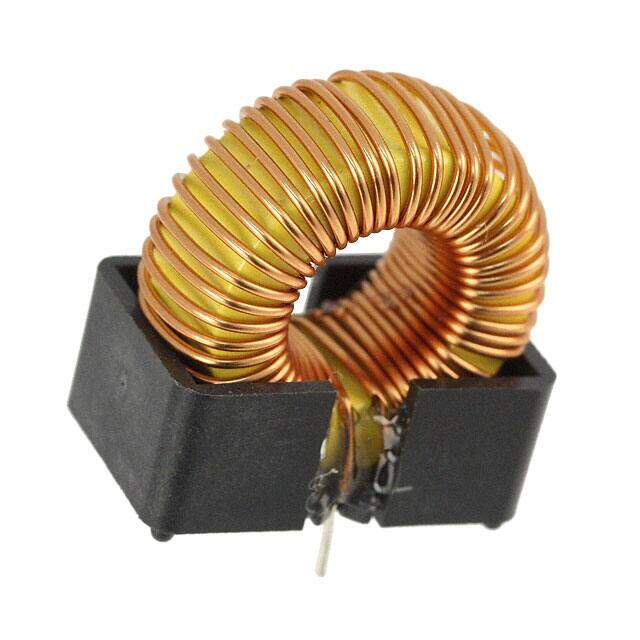

PE-53115NL
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Radial Vertical (Open) 0.970Lx0.610W 24.64mmx15.50mm 150muH ±20%
PDF
/
Buying Options
Total Price: USD $2.8
Unit Price: USD $2.7984
≥1 USD $2.7984
≥10 USD $2.33992
≥100 USD $2.136288
≥500 USD $1.831042
≥1000 USD $1.678398
≥3000 USD $1.627586
Inventory: 735
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Terminal Shape WIRE
Number of Pins 2
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~130°C
Packaging Tube
Published 2005
Size / Dimension 0.970Lx0.610W 24.64mmx15.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Toroidal
Resistance 100mOhm
HTS Code 8504.50.80.00
Orientation Vertical
Shielding NO
Number of Functions 1
Depth 15.5mm
Current Rating 3A
Military Standard Not
Lead Pitch 11.44mm
Lead Diameter 635 μm
Inductance 150μH
DC Resistance (DCR) 100mOhm Max
Max DC Current 3A
Terminal Placement DUAL ENDED
Lead/Base Style Radial
Inductance Tolerance 20%
DC Current 3A
RMS Current (Irms) 3A
Series Resistance 100mOhm
Dimensions
Height 27.94mm
Height Seated (Max) 1.100 27.94mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
