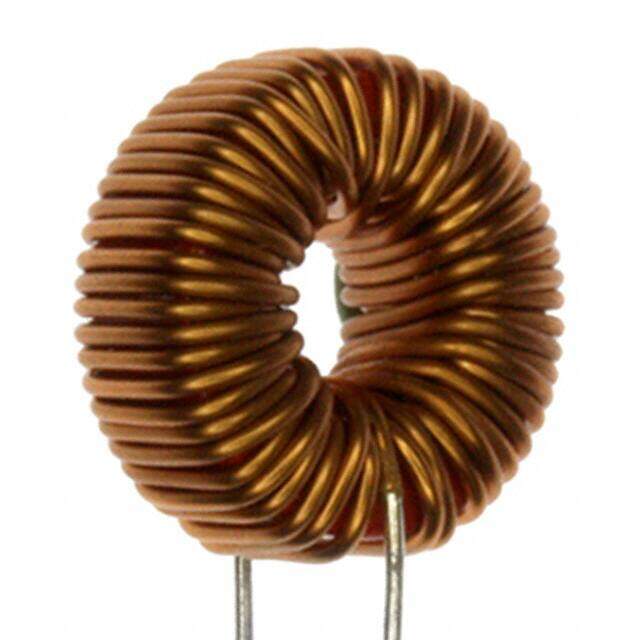

7447021 image
Favorite
7447021 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-FI Radial Vertical (Open) 0.610Diax0.315W 15.50mmx8.00mm 100muH
PDF
/
Buying Options
Total Price: USD $1.7
Unit Price: USD $1.6984
≥1 USD $1.6984
≥10 USD $1.6104
≥100 USD $1.5048
≥500 USD $1.4168
≥1000 USD $1.2848
Inventory: 1086
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 9.4996mm
Length 16.5mm
Diameter 16.5mm

Technical

Series Resistance 80mOhm
RMS Current (Irms) 2A
Inductance Tolerance 20%
Inductance Frequency - Test 10kHz
Max DC Current 2A
DC Resistance (DCR) 80mOhm Max
Test Frequency 10kHz
Inductance 100μH
Lead Pitch 7mm
Current Rating 2A
Depth 9mm
Shielding Unshielded
Current Rating (Amps) 2A
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Toroidal
Termination Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.610Diax0.315W 15.50mmx8.00mm
Series WE-FI
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole, Wire

Supply Chain

Factory Lead Time 20 Weeks
