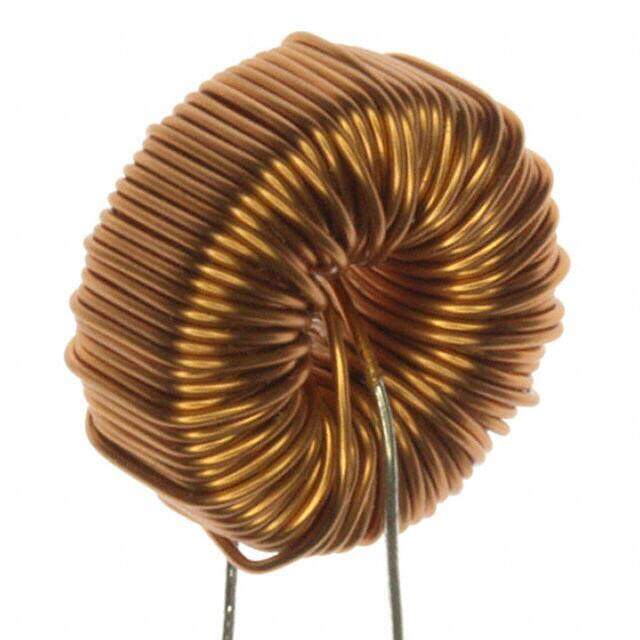

7447010
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-FI Radial Vertical (Open) 0.728Diax0.374W 18.50mmx9.50mm 470muH
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.464
≥1 USD $2.464
≥10 USD $2.3496
≥100 USD $2.1824
≥500 USD $2.0592
≥1000 USD $1.8568
Inventory: 1141
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 15.0114mm
Length 18.5mm
Diameter 18.5mm
Technical
Series Resistance 225mOhm
RMS Current (Irms) 1A
Inductance Tolerance 20%
Inductance Frequency - Test 10kHz
Max DC Current 1A
DC Resistance (DCR) 225mOhm Max
Test Frequency 10kHz
Inductance 470μH
Lead Pitch 9mm
Current Rating 1A
Depth 9.5mm
Shielding Unshielded
Current Rating (Amps) 1A
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Resistance 225mOhm
Type Toroidal
Termination Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.728Diax0.374W 18.50mmx9.50mm
Series WE-FI
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 20 Weeks
