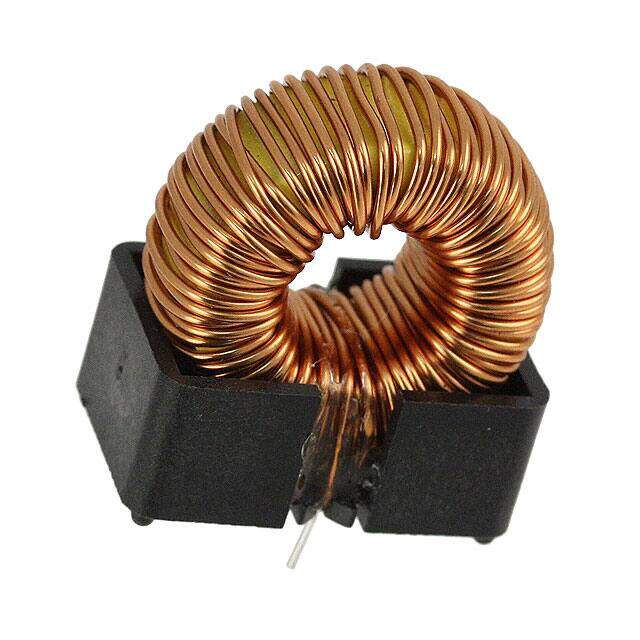

PE-53114NL
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Radial Vertical (Open) 0.970Lx0.610W 24.64mmx15.50mm 470muH ±20%
PDF
/
Buying Options
Total Price: USD $3.55
Unit Price: USD $3.5464
≥1 USD $3.5464
≥10 USD $2.96384
≥100 USD $2.706528
≥500 USD $2.319838
≥1000 USD $2.126476
≥3000 USD $2.062016
Inventory: 587
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Terminal Shape WIRE
Number of Pins 2
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~130°C
Packaging Tube
Published 2008
Size / Dimension 0.970Lx0.610W 24.64mmx15.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Toroidal
Resistance 160mOhm
Series Resistance 160mOhm
RMS Current (Irms) 640mA
DC Current 640mA
Inductance Tolerance 20%
Lead/Base Style Radial
Terminal Placement DUAL ENDED
Max DC Current 640mA
DC Resistance (DCR) 160mOhm Max
Inductance 470μH
Lead Diameter 635 μm
Lead Pitch 11.44mm
Military Standard Not
Current Rating 640mA
Depth 15.5mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 1.100 27.94mm
Height 27.94mm
