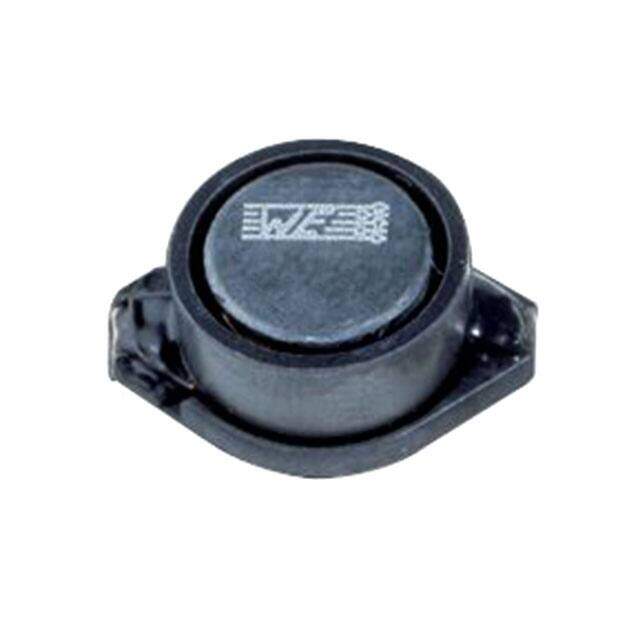

74459247
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD3 Nonstandard 0.730Lx0.600W 18.54mmx15.24mm 470muH
PDF
/
Buying Options
Total Price: USD $1.92
Unit Price: USD $1.918469
≥1 USD $1.918469
≥10 USD $1.809873
≥100 USD $1.70743
≥500 USD $1.61078
≥1000 USD $1.519605
Inventory: 1123
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series WE-PD3
Size / Dimension 0.730Lx0.600W 18.54mmx15.24mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 661mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 800mA
Shielding Shielded
Current Rating 800mA
Inductance 470μH
Test Frequency 100kHz
DC Resistance (DCR) 1.08Ohm Max
Frequency - Self Resonant 2.4MHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.1A
Inductance Tolerance 20%
RMS Current (Irms) 800mA
Dimensions
Height 7.62mm
Height Seated (Max) 0.300 7.62mm
Length 18.542mm
Width 15.24mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
