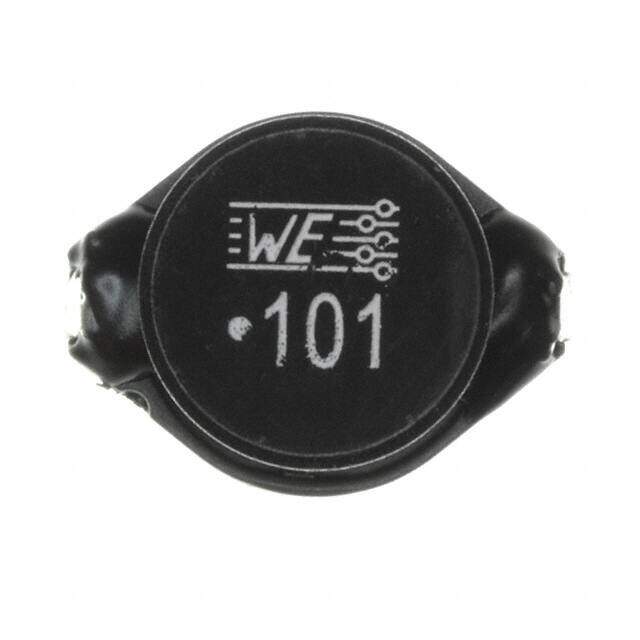

7445820 image
Favorite
7445820 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD4 Nonstandard 0.730Lx0.600W 18.54mmx15.24mm 100muH
PDF
/
Buying Options
Total Price: USD $2.14
Unit Price: USD $2.1384
≥1 USD $2.1384
≥10 USD $2.04864
≥100 USD $1.84448
≥500 USD $1.70808
Inventory: 269
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 15.24mm
Length 18.542mm
Height Seated (Max) 0.280 7.11mm
Height 7.112mm

Technical

RMS Current (Irms) 1.8A
Inductance Tolerance 20%
Current - Saturation 3.4A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 6MHz
DC Resistance (DCR) 190mOhm Max
Test Frequency 100kHz
Inductance 100μH
Current Rating 1.8A
Shielding Unshielded
Current Rating (Amps) 1.8A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 141mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.730Lx0.600W 18.54mmx15.24mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 24 Weeks
