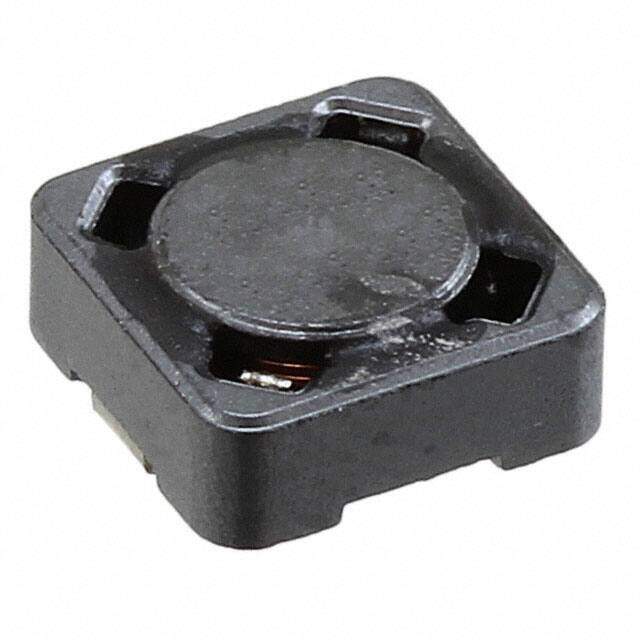

CDRH73NP-101MC-B image
Favorite
CDRH73NP-101MC-B image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description CDRH73 Nonstandard 0.287Lx0.287W 7.30mmx7.30mm 100muH
PDF
/
Buying Options
Total Price: USD $6.96
Unit Price: USD $6.95685
≥1 USD $6.95685
≥10 USD $5.7076
≥100 USD $5.52995
≥500 USD $5.35135
≥1000 USD $5.17275
Inventory: 1076
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.134 3.40mm
Height 3.4mm

Technical

Case/Size Code 2929
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 500mA
DC Resistance (DCR) 790mOhm Max
Test Frequency 1kHz
Inductance 100μH
Current Rating 500mA
Reach Compliance Code unknown
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Series CDRH73
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
