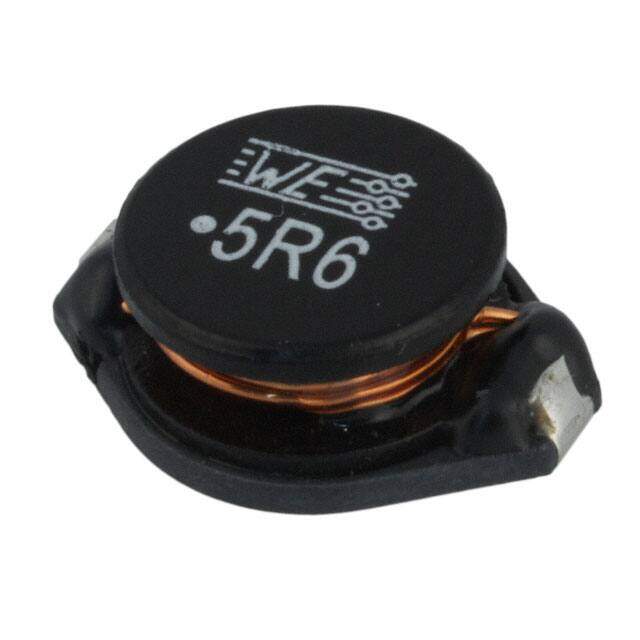

74458005 image
Favorite
74458005 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD4 Nonstandard 0.730Lx0.600W 18.54mmx15.24mm 5.6muH
PDF
/
Inventory: 8573
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 15.24mm
Length 18.542mm
Height Seated (Max) 0.280 7.11mm
Height 7.112mm

Technical

Inductance Tolerance 20%
Current - Saturation 13.1A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 26MHz
Max DC Current 5.3A
DC Resistance (DCR) 20mOhm Max
Test Frequency 100kHz
Inductance 5.6μH
Current Rating 5.3A
Shielding Unshielded
Current Rating (Amps) 5.3A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 12mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.730Lx0.600W 18.54mmx15.24mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 24 Weeks
