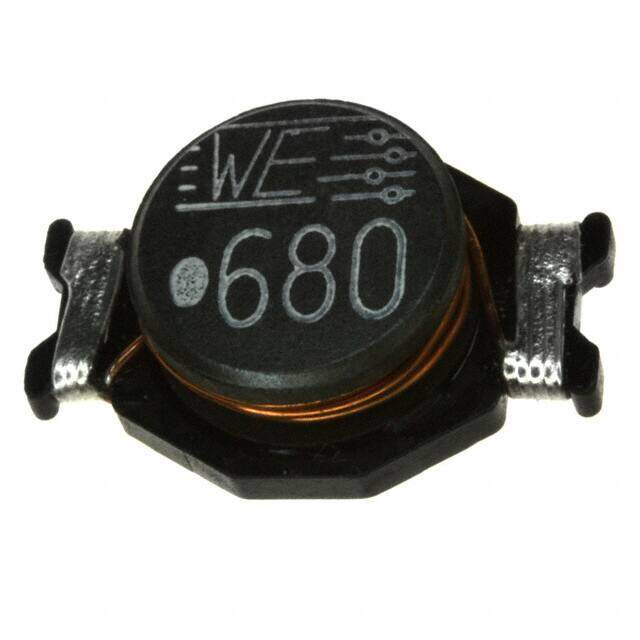

74457168
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.866Lx0.591W 22.00mmx15.00mm 68muH
PDF
/
Inventory: 4523
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.866Lx0.591W 22.00mmx15.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 112mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 2.4A
Shielding Unshielded
Depth 15mm
Current Rating 2.4A
Inductance 68μH
Test Frequency 100kHz
DC Resistance (DCR) 134mOhm Max
Max DC Current 2.4A
Frequency - Self Resonant 7.6MHz
Inductance Frequency - Test 100kHz
Current - Saturation 4A
Inductance Tolerance 10%
RMS Current (Irms) 2.4A
Dimensions
Height 7.0104mm
Height Seated (Max) 0.307 7.80mm
Length 21.9964mm
Width 15.0114mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
