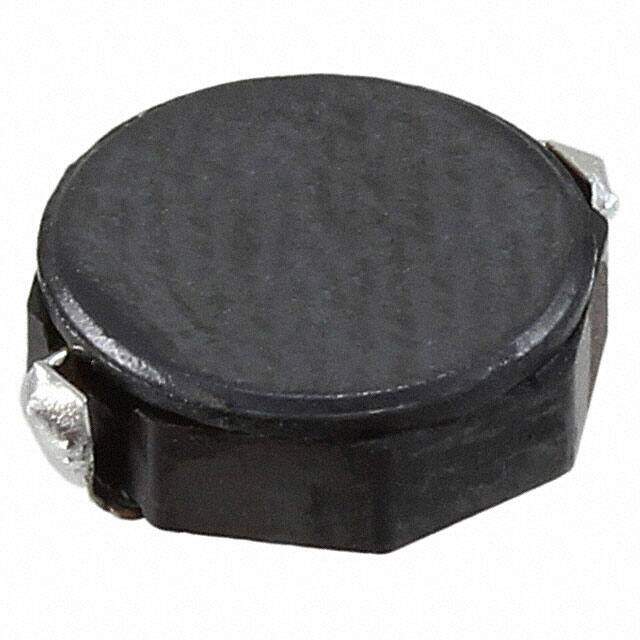

CDRH8D28NP-680NC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRH8D28 Nonstandard 0.315Lx0.315W 8.00mmx8.00mm 68muH
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.87503
≥1 USD $0.87503
≥10 USD $0.825495
≥100 USD $0.778778
≥500 USD $0.734691
≥1000 USD $0.693107
Inventory: 1131
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Weight 599.989307mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Published 2004
Series CDRH8D28
Size / Dimension 0.315Lx0.315W 8.00mmx8.00mm
Tolerance ±30%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 8.3mm
Current Rating 980mA
Inductance 68μH
Test Frequency 100kHz
DC Resistance (DCR) 286mOhm Max
Max DC Current 980mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 920mA
Case/Size Code 3232
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
