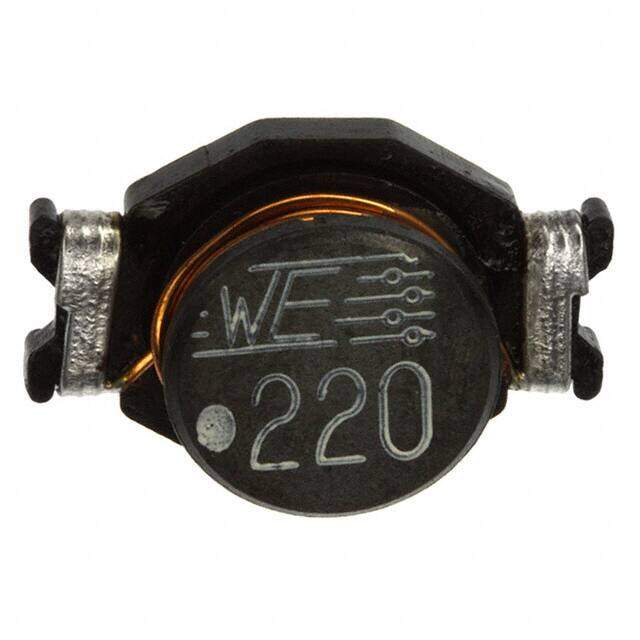

74457122
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.866Lx0.591W 22.00mmx15.00mm 22muH
PDF
/
Buying Options
Total Price: USD $15.83
Unit Price: USD $15.8346
≥1 USD $15.8346
≥10 USD $12.9922
≥100 USD $12.58655
≥500 USD $12.17995
≥1000 USD $11.7743
Inventory: 1100
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 15.0114mm
Length 21.9964mm
Height Seated (Max) 0.307 7.80mm
Height 7.0104mm
Technical
RMS Current (Irms) 4A
Inductance Tolerance 15%
Current - Saturation 6.5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 14MHz
Max DC Current 4A
DC Resistance (DCR) 47mOhm Max
Test Frequency 100kHz
Inductance 22μH
Current Rating 4A
Depth 15mm
Shielding Unshielded
Current Rating (Amps) 4A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 39.3mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±15%
Size / Dimension 0.866Lx0.591W 22.00mmx15.00mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
