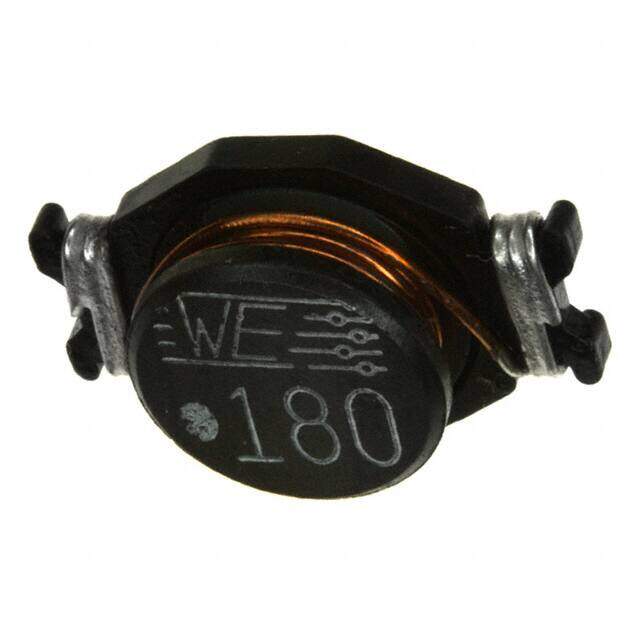

74457118
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.866Lx0.591W 22.00mmx15.00mm 18muH
PDF
/
Inventory: 9121
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 15.0114mm
Length 21.9964mm
Height Seated (Max) 0.307 7.80mm
Height 7.0104mm
Technical
Current - Saturation 8A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 14.5MHz
DC Resistance (DCR) 40mOhm Max
Test Frequency 100kHz
Inductance 18μH
Current Rating 4.6A
Shielding Unshielded
Current Rating (Amps) 4.6A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±15%
Size / Dimension 0.866Lx0.591W 22.00mmx15.00mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
