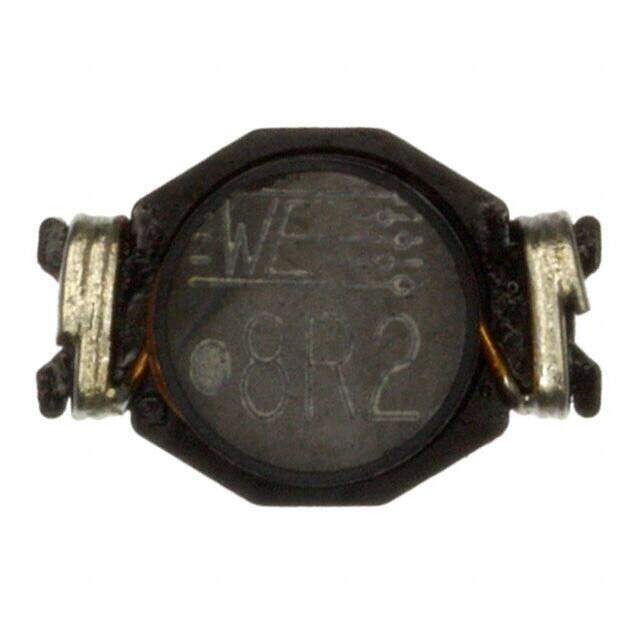

74457082 image
Favorite
74457082 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD4 Nonstandard 0.866Lx0.591W 22.00mmx15.00mm 8.2muH
PDF
/
Buying Options
Total Price: USD $2.15
Unit Price: USD $2.1472
≥1 USD $2.1472
≥10 USD $2.04864
≥100 USD $1.84448
≥500 USD $1.70808
Inventory: 311
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 15.0114mm
Length 21.9964mm
Height Seated (Max) 0.307 7.80mm
Height 7.0104mm

Technical

Current - Saturation 11A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 23MHz
Max DC Current 7A
DC Resistance (DCR) 19mOhm Max
Test Frequency 100kHz
Inductance 8.2μH
Current Rating 7A
Depth 15mm
Shielding Unshielded
Current Rating (Amps) 7A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.866Lx0.591W 22.00mmx15.00mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
