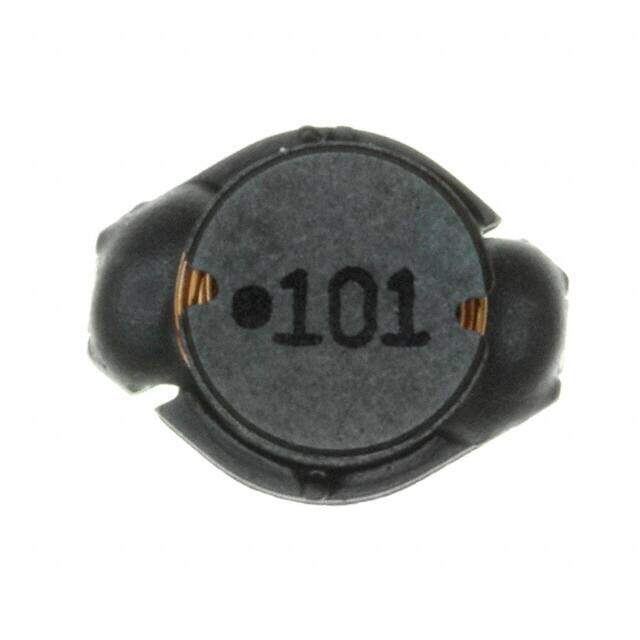

7445620
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.500Lx0.394W 12.70mmx10.00mm 100muH
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.8128
≥1 USD $1.8128
≥10 USD $1.7336
≥100 USD $1.61832
≥500 USD $1.50304
≥1000 USD $1.38688
Inventory: 664
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 10.0076mm
Length 12.7mm
Height Seated (Max) 0.209 5.30mm
Height 5mm
Technical
Series Resistance 253mOhm
RMS Current (Irms) 1.4A
DC Current 1.4A
Inductance Tolerance 10%
Current - Saturation 1.5A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 8MHz
Max DC Current 1.4A
DC Resistance (DCR) 330mOhm Max
Test Frequency 100kHz
Inductance 100μH
Military Standard Not
Current Rating 1.4A
Depth 10.2mm
Shielding Unshielded
Current Rating (Amps) 1.4A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 253mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
