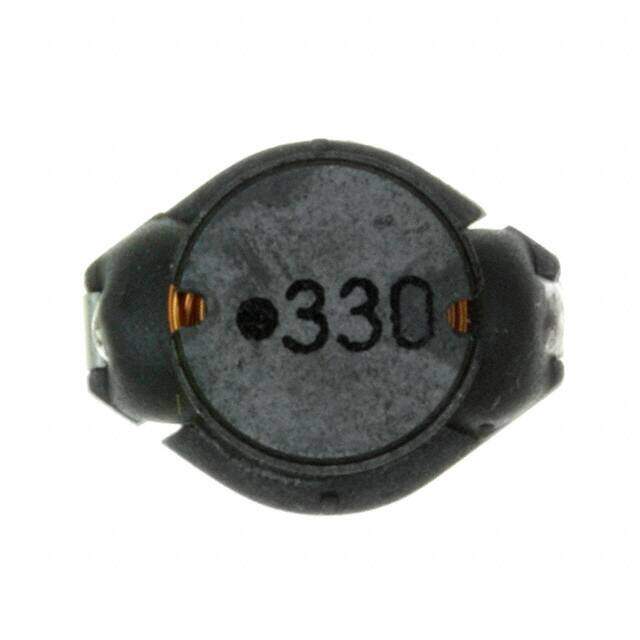

74456133 image
Favorite
74456133 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD4 Nonstandard 0.500Lx0.394W 12.70mmx10.00mm 33muH
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.76545
≥1 USD $2.76545
≥10 USD $2.26955
≥100 USD $2.1983
≥500 USD $2.12705
≥1000 USD $2.05675
Inventory: 8204
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 10.0076mm
Length 12.7mm
Height Seated (Max) 0.209 5.30mm
Height 5mm

Technical

Current - Saturation 2.6A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 15MHz
Max DC Current 2.3A
DC Resistance (DCR) 120mOhm Max
Test Frequency 100kHz
Inductance 33μH
Current Rating 2.3A
Depth 10mm
Shielding Unshielded
Current Rating (Amps) 2.3A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
