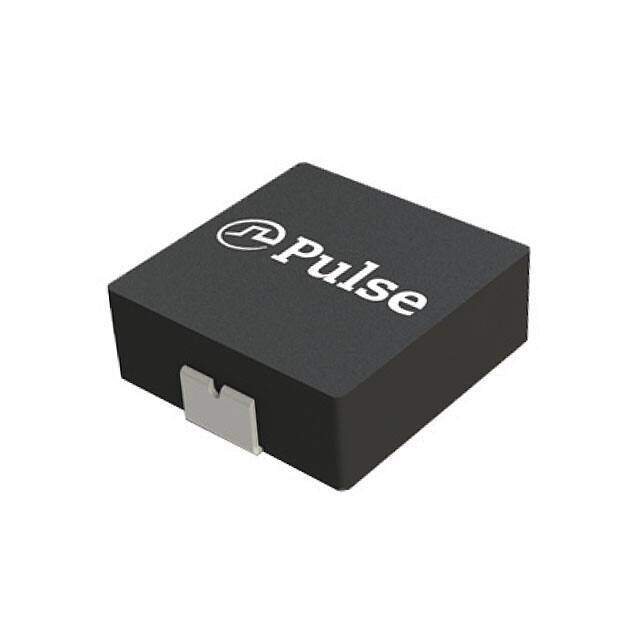

PA4342.333NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PA4342.XXXNLT Nonstandard 0.453Lx0.406W 11.50mmx10.30mm 33muH
PDF
/
Buying Options
Total Price: USD $1.06
Unit Price: USD $1.0648
≥1 USD $1.0648
≥10 USD $0.89848
≥100 USD $0.81664
≥500 USD $0.767536
≥1000 USD $0.636944
≥3000 USD $0.587946
Inventory: 1155
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.157 4.00mm
Technical
Rated Current-Max 3.5A
Case/Size Code 4541
Current - Saturation 5A
Inductance Frequency - Test 100kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 112mOhm Max
Test Frequency 0.1MHz
Inductance 33μH
Number of Functions 1
Shielding YES
Packing Method TR, 13 Inch
Current Rating (Amps) 3.5A
HTS Code 8504.50.80.00
Type Molded
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.453Lx0.406W 11.50mmx10.30mm
Series PA4342.XXXNLT
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
