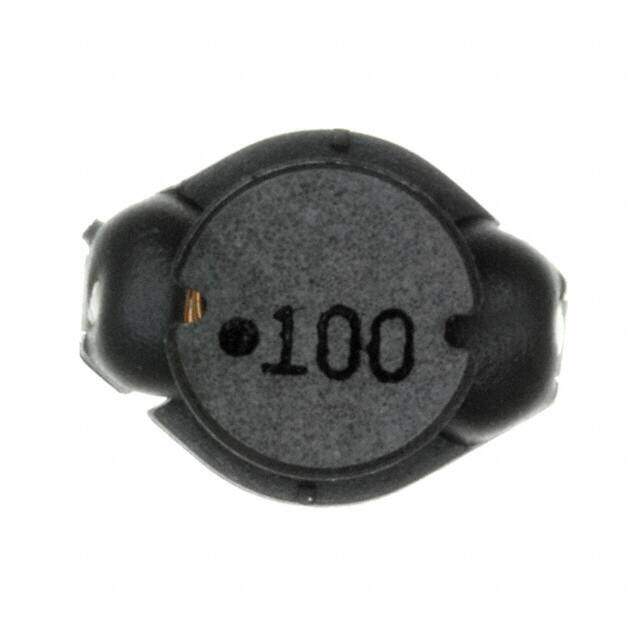

7445610
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 10UH 3.3A 45 MOHM SMD
PDF
/
Buying Options
Total Price: USD $23.36
Unit Price: USD $23.3586
≥1 USD $23.3586
≥10 USD $19.16625
≥100 USD $18.5668
≥500 USD $17.9683
≥1000 USD $17.36885
Inventory: 1079
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 34.9mOhm
Current Rating (Amps) 3.3A
Shielding Unshielded
Inductance 10μH
DC Resistance (DCR) 45mOhm Max
Frequency - Self Resonant 23MHz
Inductance Frequency - Test 100kHz
Current - Saturation 5A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.209 5.30mm
Compliance
RoHS Status ROHS3 Compliant
