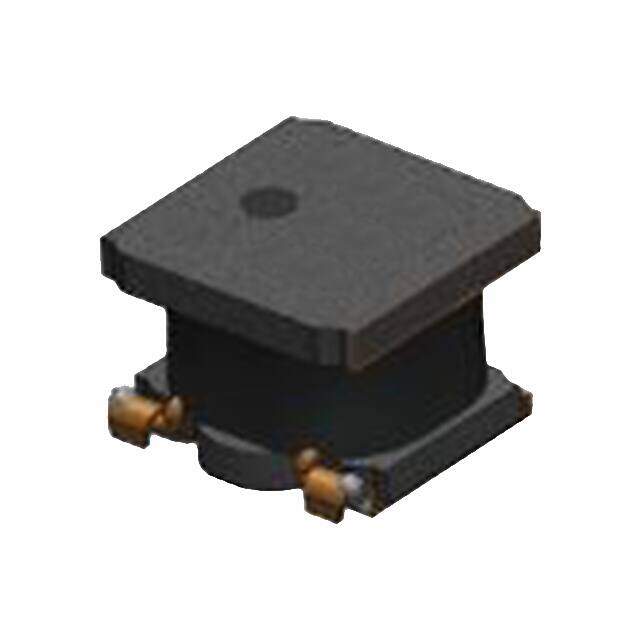

VLS5045EX-100M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
VLS-EX Nonstandard 0.197Lx0.197W 5.00mmx5.00mm 10muH
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3344
≥1 USD $0.3344
≥10 USD $0.28512
≥100 USD $0.261888
≥500 USD $0.237952
≥1000 USD $0.211728
≥3000 USD $0.199866
Inventory: 4725
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2013
Series VLS-EX
Size / Dimension 0.197Lx0.197W 5.00mmx5.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.5A
Shielding Shielded
Current Rating 2.5A
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 79.3mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 3.1A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.177 4.50mm
Length 5.0038mm
Width 5.0038mm
Compliance
RoHS Status ROHS3 Compliant
