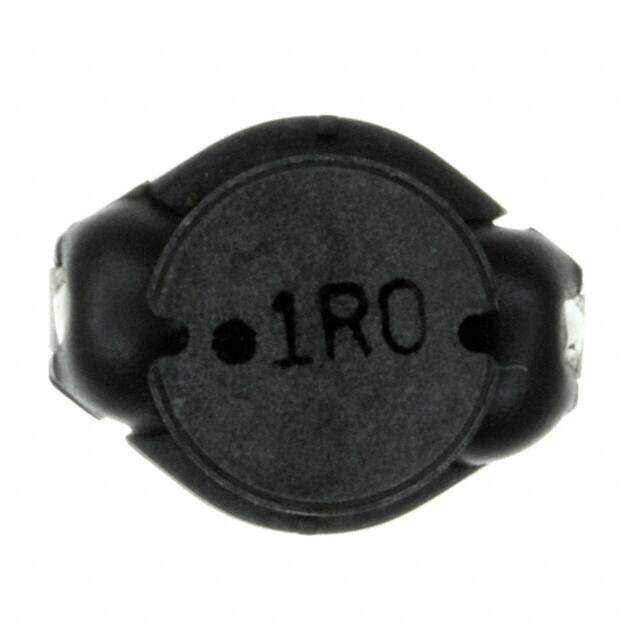

7445601
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.500Lx0.394W 12.70mmx10.00mm 1muH
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.8128
≥1 USD $1.8128
≥10 USD $1.7336
≥100 USD $1.61832
≥500 USD $1.50304
≥1000 USD $1.38688
Inventory: 1886
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 4.1mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 8.6A
Shielding Unshielded
Depth 10mm
Current Rating 8.6A
Inductance 1μH
Test Frequency 100kHz
DC Resistance (DCR) 7mOhm Max
Max DC Current 8.6A
Frequency - Self Resonant 95MHz
Inductance Frequency - Test 100kHz
Current - Saturation 14.25A
Inductance Tolerance 20%
RMS Current (Irms) 8.6A
Dimensions
Height 5mm
Height Seated (Max) 0.209 5.30mm
Length 12.7mm
Width 10.0076mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant

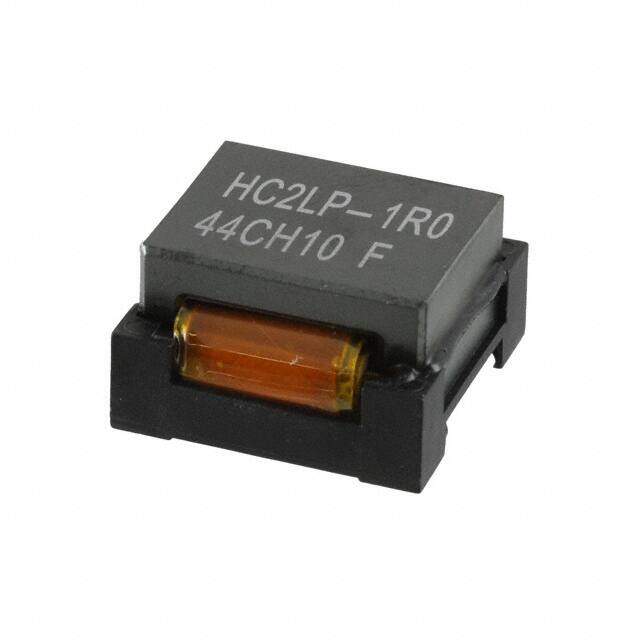

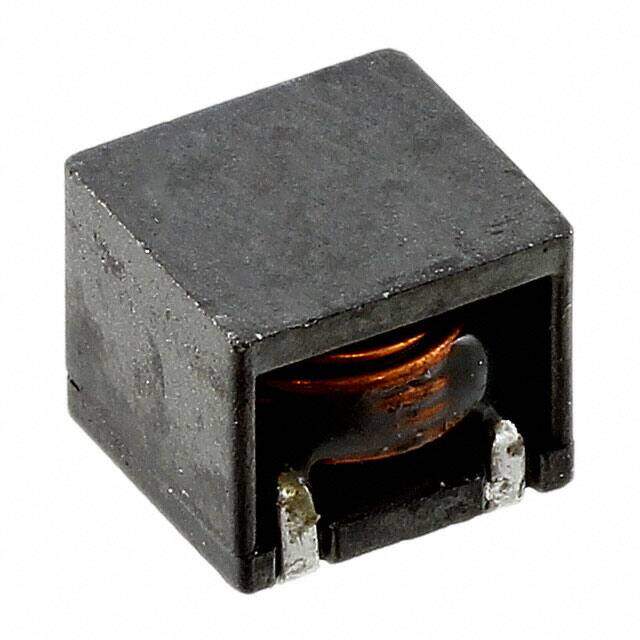

Alternative Model
