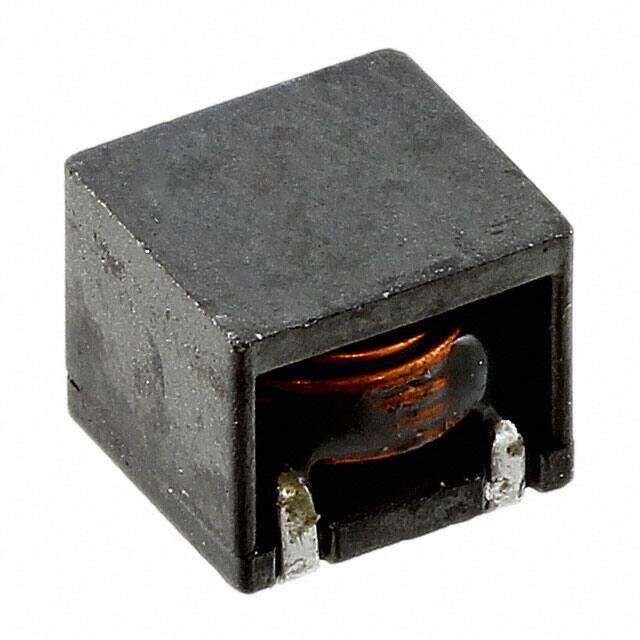

PG0871.102NL
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PG0871NL Nonstandard 0.299Lx0.291W 7.60mmx7.40mm 1muH
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.2584
≥1 USD $1.2584
≥10 USD $1.06744
≥100 USD $0.98384
≥500 USD $0.87912
≥1000 USD $0.737018
Inventory: 4086
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.252 6.40mm
Technical
Special Feature DCR IS MEASURED AT 8% TOLERANCE
DC Current 17.5A
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 2.3mOhm
Test Frequency 100kHz
Inductance 1μH
Military Standard Not
Current Rating 19A
Depth 7.4mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.299Lx0.291W 7.60mmx7.40mm
Series PG0871NL
Packaging Tray
Operating Temperature -40°C~130°C
Physical
Core Material Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
