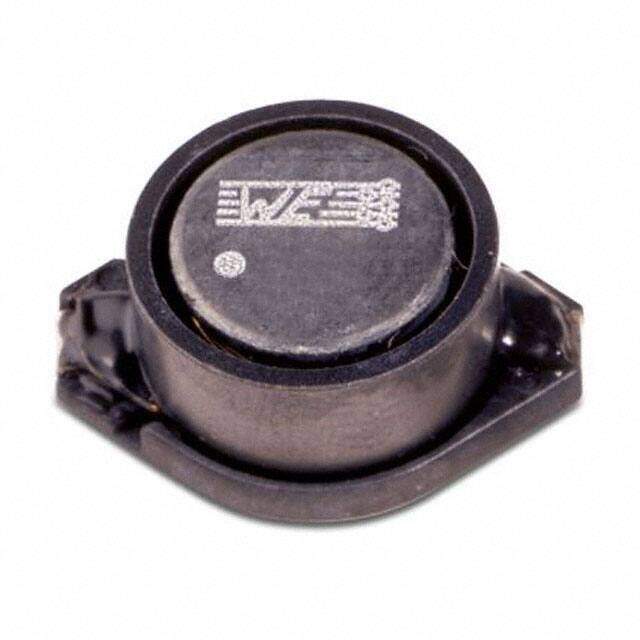

74454147
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD3 Nonstandard 0.500Lx0.394W 12.70mmx10.00mm 47muH
PDF
/
Buying Options
Total Price: USD $18.02
Unit Price: USD $18.0196
≥1 USD $18.0196
≥10 USD $14.78485
≥100 USD $14.32315
≥500 USD $13.8605
≥1000 USD $13.3988
Inventory: 3783
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Length 12.7mm
Height Seated (Max) 0.205 5.20mm
Height 4.9mm
Technical
Series Resistance 158mOhm
RMS Current (Irms) 1A
Inductance Tolerance 15%
Current - Saturation 1.4A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 10MHz
Max DC Current 1A
DC Resistance (DCR) 190mOhm Max
Inductance 47μH
Current Rating 1A
Depth 10mm
Shielding Shielded
Current Rating (Amps) 1A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 158mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±15%
Size / Dimension 0.500Lx0.394W 12.70mmx10.00mm
Series WE-PD3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
