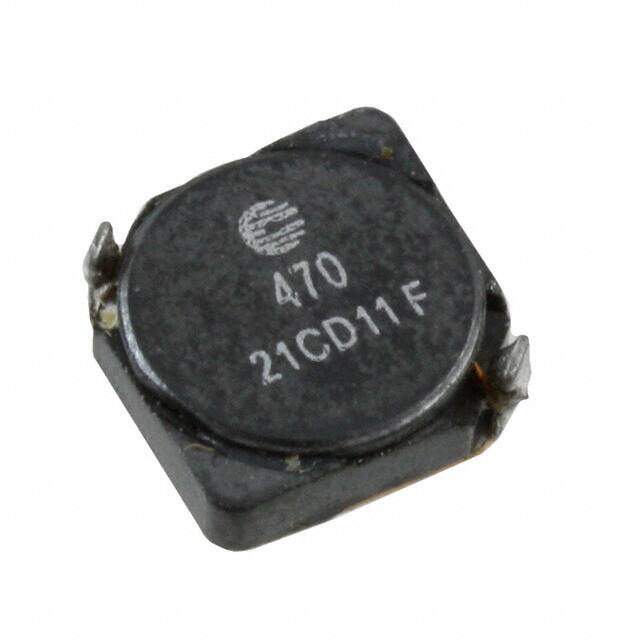

SD6020-470-R image
Favorite
SD6020-470-R image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SD6020 Nonstandard 0.236Lx0.236W 6.00mmx6.00mm 47muH
PDF
/
Buying Options
Total Price: USD $1.82
Unit Price: USD $1.8216
≥1 USD $1.8216
≥10 USD $1.54792
≥100 USD $1.426304
≥500 USD $1.274592
≥1000 USD $1.062248
≥3000 USD $1.031853
Inventory: 1173
Minimum: 1
-
+

Technical Details

Dimensions

Width 5.9944mm
Length 5.9944mm
Height Seated (Max) 0.079 2.00mm
Height 2mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free

Technical

DC Current 610mA
Current - Saturation 540mA
Inductance Frequency - Test 100kHz
Max DC Current 540mA
DC Resistance (DCR) 595mOhm Max
Test Frequency 100kHz
Inductance 47μH
Military Standard Not
Current Rating 610mA
Depth 6mm
Shielding Shielded
Current Rating (Amps) 610mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Series SD6020
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Weight 907.18474mg
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 13 Weeks
