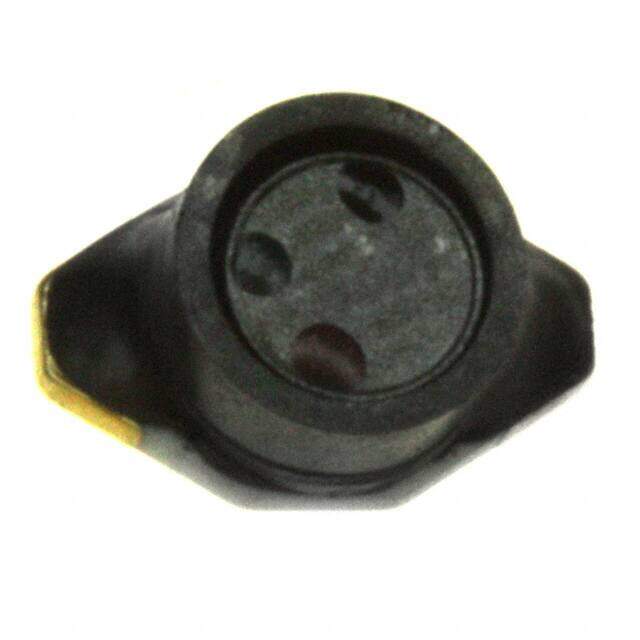

74451115 image
Favorite
74451115 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD3 Nonstandard 0.500Lx0.406W 12.70mmx10.30mm 15muH
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.87815
≥1 USD $1.87815
≥10 USD $1.5409
≥100 USD $1.49245
≥500 USD $1.44495
≥1000 USD $1.3965
Inventory: 1189
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 4.445mm
Length 6.604mm
Height Seated (Max) 0.118 3.00mm
Height 2.921mm

Technical

RMS Current (Irms) 800mA
Inductance Tolerance 20%
Current - Saturation 270mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 25.5MHz
Max DC Current 800mA
DC Resistance (DCR) 90mOhm Max
Test Frequency 100kHz
Inductance 15μH
Current Rating 800mA
Depth 4.45mm
Shielding Shielded
Current Rating (Amps) 800mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 75mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.500Lx0.406W 12.70mmx10.30mm
Series WE-PD3
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
